Description

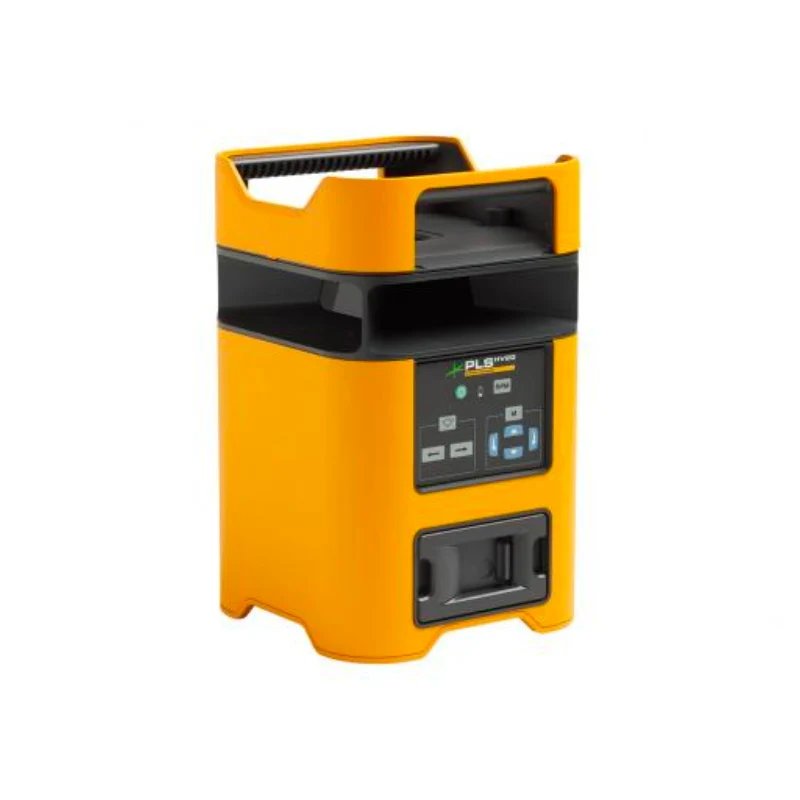

Fluke PLS HV2G Green Horizontal Rotary Laser Level
Product overview
The PLS HV2G green beam rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2G emits a laser line in the horizontal or vertical plane. The HV2G rotary lasers also emit a point from the top when placed in the vertical position. The HV2G lasers are ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
These professional-grade tools offer the accuracy and durability you can expect from PLS, a Fluke Company.
Features
- The HV2G rotary laser level emits a self-leveling horizontal laser plane and can be used in the vertical position to emit a vertical laser plane. Applications include setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation.
- HV2G comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation
- The kit includes elevating tripod and 16-foot grade rod.
- Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
- Laser Axis: Green Horizontal and Vertical
- Working range: ≤ 30 m (100 ft)
- Working range with XLD: ≤ 300 m (1000 ft radius)
- 1-meter drop tested
- IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
Specifications
| Rotary levels | PLS HV2R | PLS HV2G | |
|---|---|---|---|
| Laser | Class II red | Class II green | |
| Laser axis | Horizontal and Vertical | Horizontal and vertical | |
| Accuracy | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) | |
| Auto-leveling range | ± 5-degrees | ± 5-degrees | |
| Manual slope range | ± 5-degrees | ± 5-degrees | |
| Working range | |||
| Without XLD laser detector |
≤ 30 m (100 ft) | ≤ 30 m (100 ft) | |
| With XLD laser detector |
≤ 300 m (1000 ft) | ≤ 300 m (1000 ft) | |
| Weight | 3 kg (6.6 lb) | 3 kg (6.6 lb) | |
| Drop test | 1 m | 1 m | |
| IP rating | IP67 | IP67 | |
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) | -20 °C to 50 °C (-4 °F to 122 °F) | |
| Battery | 4 x D Alkaline or NiMH rechargeable | 4 x D Alkaline or NiMH rechargeable | |
| Battery life | > 60 hours | > 60 hours | |
| Accessories | |||
Additional information
| Accuracy |
3/32" @ 100' (2.4mm @ 30m) |
|---|---|
| Batteries |
4 D Alkaline, NIMH Rechargeable |
| Laser Class |
Class II |
| IP Rating |
Product IP Rating 67 |
| Operating Time |
60 hours |
