Description

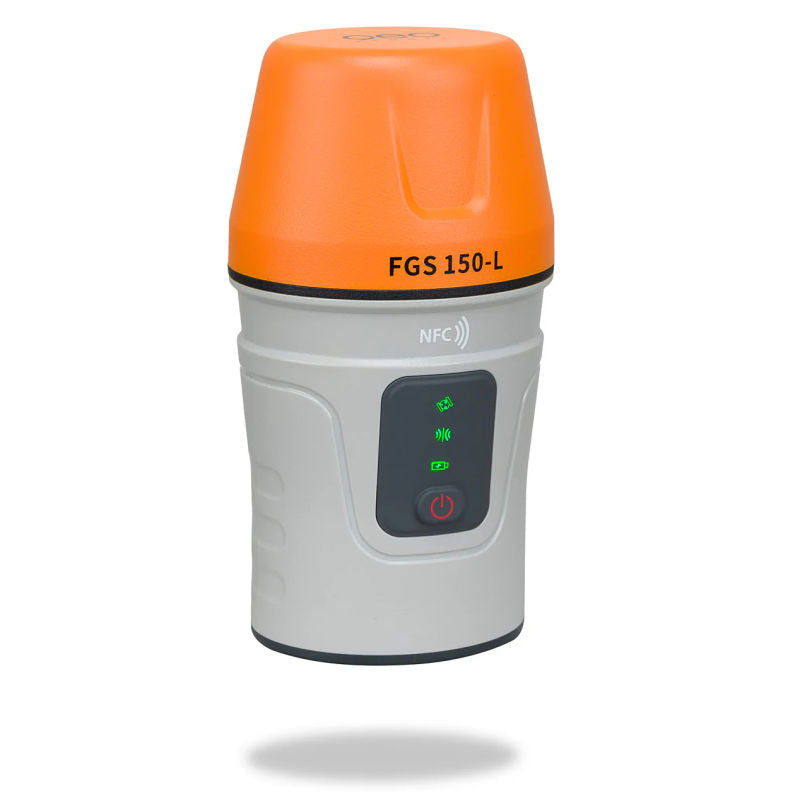

geo-FENNEL FGS 150-L GNSS Receiver with G 20 Antenna Pole
The innovative solution for surveying tasks with a built-in laser rangefinder.
The integrated laser rangefinder, in combination with the 60° TILT compensator, allows the user to carry out measurements and marking work in inaccessible areas. The geo-FENNEL GNSS receiver FGS 150-L enables measurements from a distance of up to 10 m with extremely high precision.
Includes:
| geo-FENNEL GNSS-Antenna FGS 150-L |
| Adapter Holder for FGS 150-L |

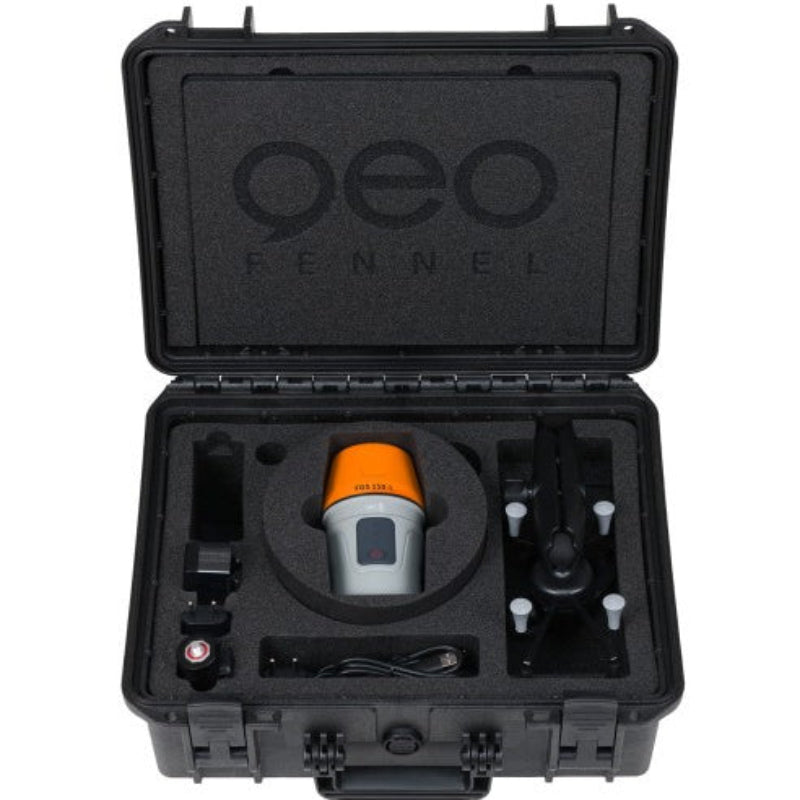

| Small Case for FGS 150-L / 200 / Lite plus |

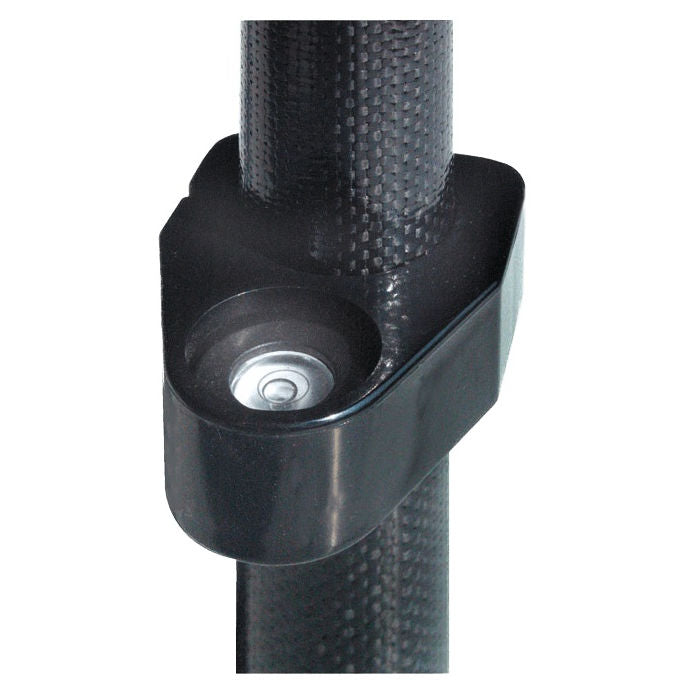

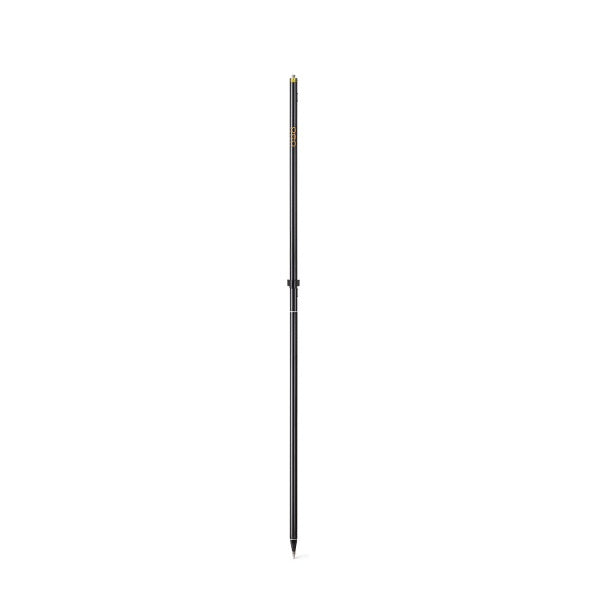

| GPS Antenna Pole G 20, 2 m |
| Foam Inlay for FGS 150-L |
| USB-Flash Drive 3in1 / 32 GB geo-FENNEL Survey |
Specifications:
| Operating time: | 20 h |
| Bluetooth: | 5.0, Windows & Android |
| Accuracy static: | 2.5 mm + 0.5 ppm RMS horizontal, 5 mm + 0.5 ppm RMS vertical |
| Accuracy SBAS: | 0.5 RMS horizontal, 0.8 RMS vertical |
| Accuracy stand-alone: | 1.5m 3D RMS |
| Power supply: | 5/9V/1.45W |
| Dimension: | 80x70x150mm |
| Weight: | 0.38kg |
| Loading time: | 4 hours |
| BEIDOU: | B1l, B2l, B3l, B1C, B2a, B2b |
| Storage temperature: | -30°C to +60°C |
| Dust/water protection: | IP67 |
| Working temperature: | -20°C to 50°C |
| GLONASS: | G1, G2, G3 |
| SBAS: | L1C/A |
| QZSS: | L1C/A, L2C, L5, L1C |
| GALILEO: | E1, E5a, E5b, E6c, E5 AltBOC |
| GPS: | L1C/A, L1C, L2P, L2C, L5 |
| Channels: | 1590 |
| Accuracy DGPS: | <0.4m 3D RMS |
| Accuracy RTK: | 8.0mm + 1ppm horizontal, 15.0mm + 1ppm vertical |
| Protocol: |
RTCM2.X, 3.X, CMR(GPSonly), CMR+(GPSonly) |
