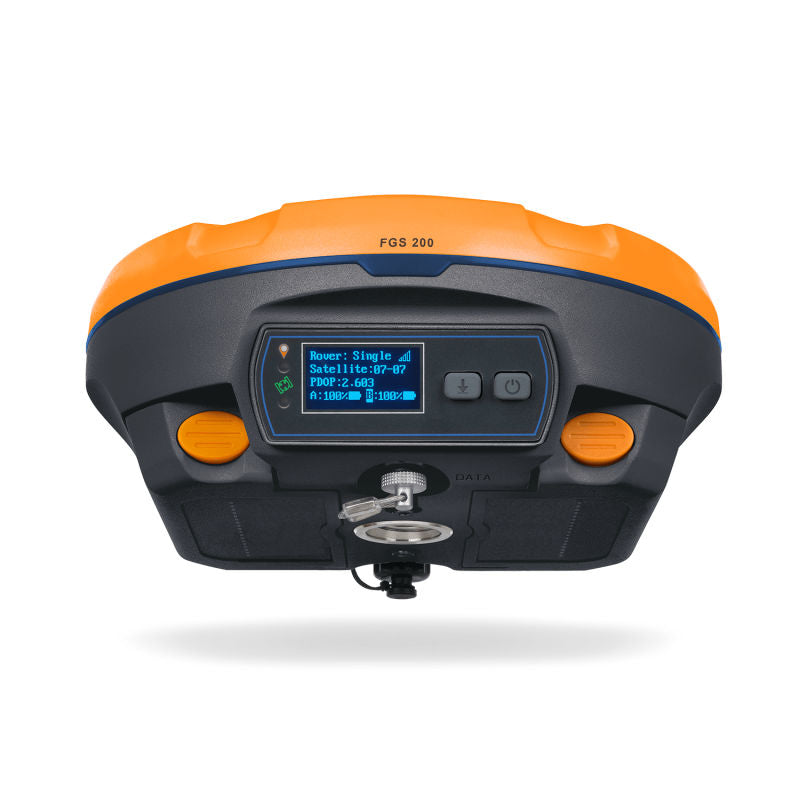

geo-FENNEL FGS 200 GNSS Receiver Base + Rover set with G20 Antenna Pole
The new geo-FENNEL GNSS receiver FGS 200 is, due to its unique-in-its-class compact design, a reliable partner in the field, given its suitability for working under rough conditions and in difficult terrain.
It is equipped with an internal IMU-sensor and compensates slopes of the antenna pole up to 60°.This function makes the survey job much easier than before. Equipped with a powerful UHF modem (Rx & Tx), Wi-Fi and a 4G modem, it offers a variety of connectivity options.
The receiver with its 574 channels supports all available GNSS sources, such as GPS, GLO- NASS, GALILEO and BEIDOU without the need for further activation.
The system is open to third-party software and supports the Carlson SurvCE and MicroSurvey® FieldGenius software solutions.
Features
- Working distance of internal UHF varies in different environments; the maximum distance is 5 km in ideal situations
- Works with all kinds of CORS-systems worldwide
- Integrated IMU-sensor with an accuracy up to 3 cm
- Small and handy design
- Supports MicroSurvey FieldGenius and Carlson SurvCE
| Operating time: | 15 h |
| QZSS: | QZSS, IRNSS |
| Extended size: | Ø 15.5 cm × 7.3 cm |
| Data Communication Wi-Fi: | yes |
| Accuracy: | 2.5 mm + 0.5 ppm, 5 mm + 0.5 ppm, 8 mm +1 ppm, 15.0 mm + 1 ppm vertical |
| Correction data I/O: | RTCM 2.x, 3.x, CMR, CMR+ |
| GALILEO: | E1, E5a, E5b, AltBOC |
| Dust / water protection: | IP 67 |
| GPS: | L1 C/A, L2C, L2P, L5 |
| Channels: | 574 |
| GLONASS: | L1 C/A, L1P, L2 C/A, L2P |
| BEIDOU: | B1, B2, B3 |
| Shock and protection: | Withstands 1.5 m free drop onto hard surface |
| Weight: | 1,2 kg |
| Bluetooth: | 4.0, for Windows and Android |
| SBAS: | WAAS, EGNOS, MSAS, GAGAN |
| Power supply: | 2 x 3.400 mAh |
Supplied with:
| 2 x geo-FENNEL GNSS-Antenna FGS 200 |
| (tablet not included) |
| RAM Mounts X-Grip holder mounts for Tablet |
| Battery Charger for FGS 200 |
| Batteries for FGS 200 |
| USB-data cable for FGS 1 |
| RS 232-cable for FGS 1 |
| Adaptor pole for FGS 1 |
| Whip Antenna for FGS 1 |
| External Charging Cable |
| Connector for GPS-Antenna 5/8" |
| RUBBER TAPE 3 m x 16 mm |
| Tribrach AJ10, with opt. plummet, Leica type, black |
| Tribrach adapter AL11D, opt. plummet, black |

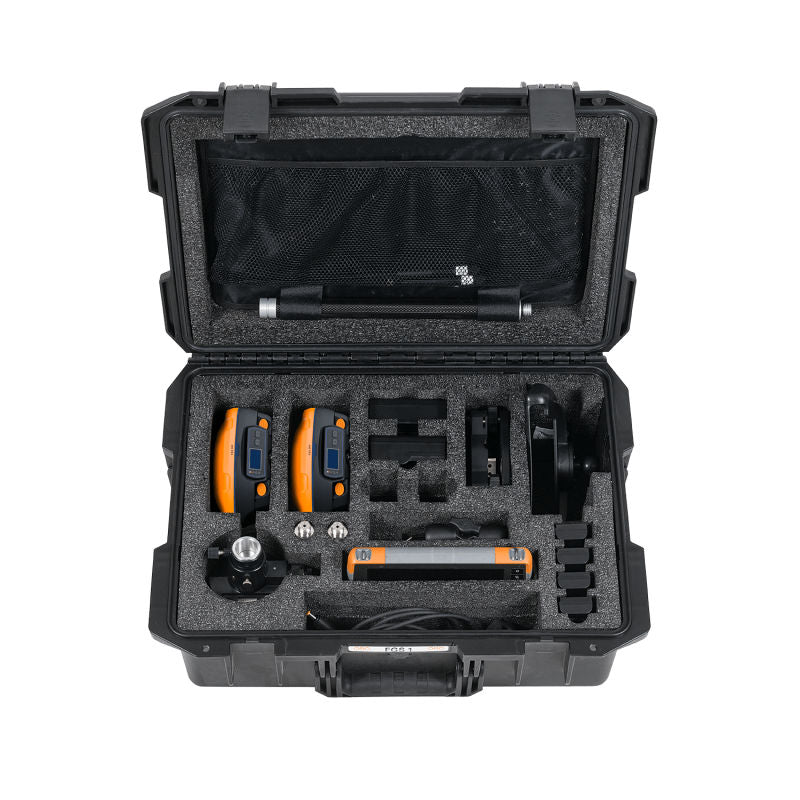

| Large container for FGS 1 / 100 / 200 |

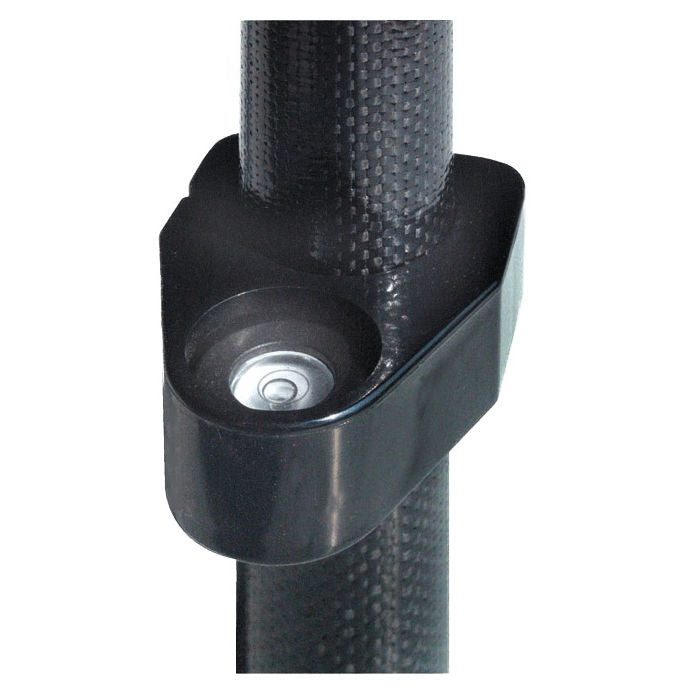

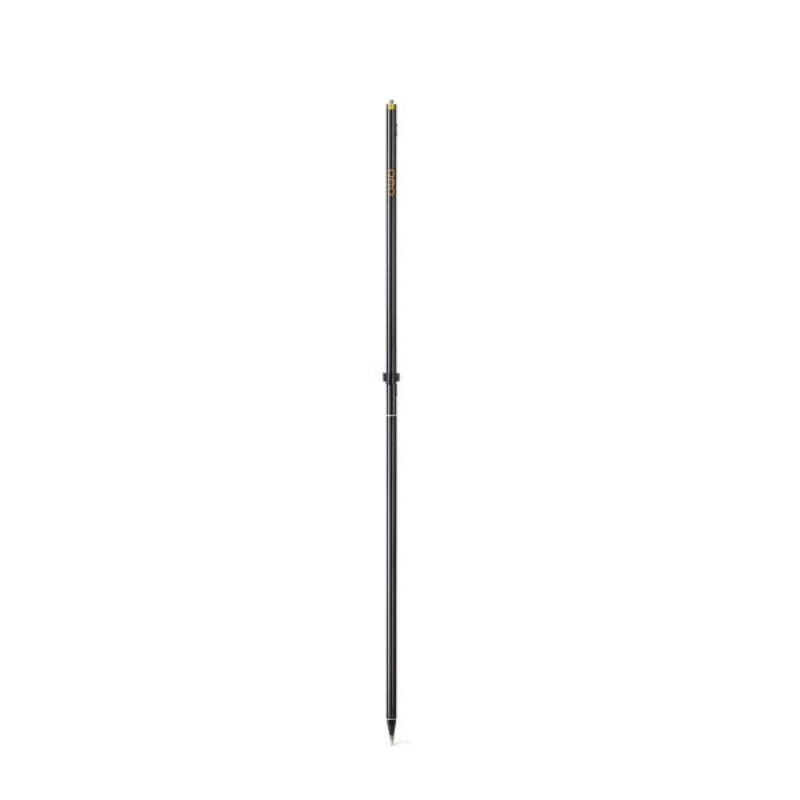

| GPS antenna pole G 20, 2 m |
| USB-FlashDrive 3in1 / 32 GB geo-FENNEL Survey software |
