Description

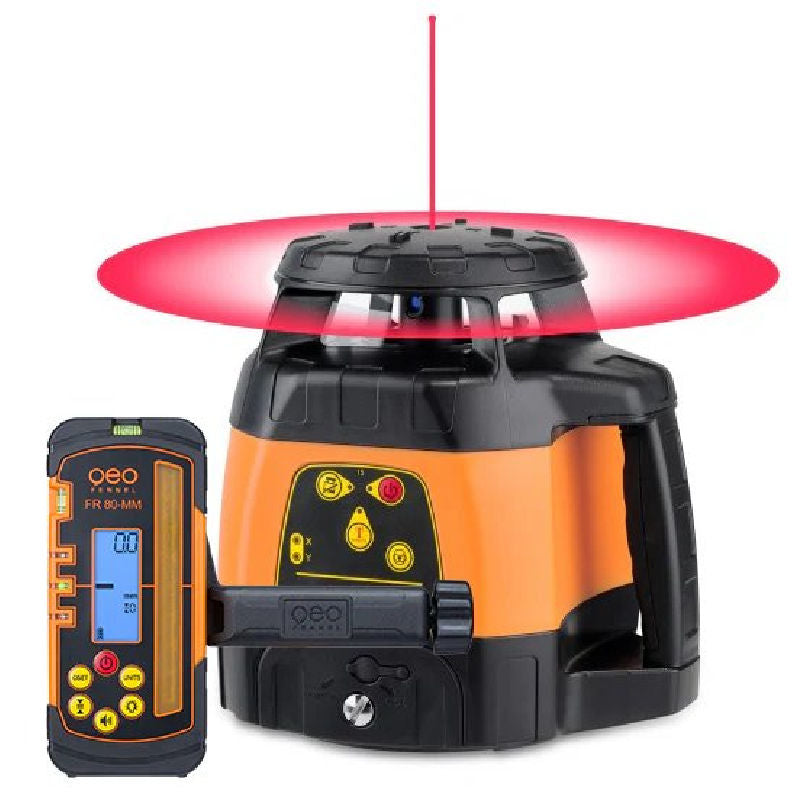

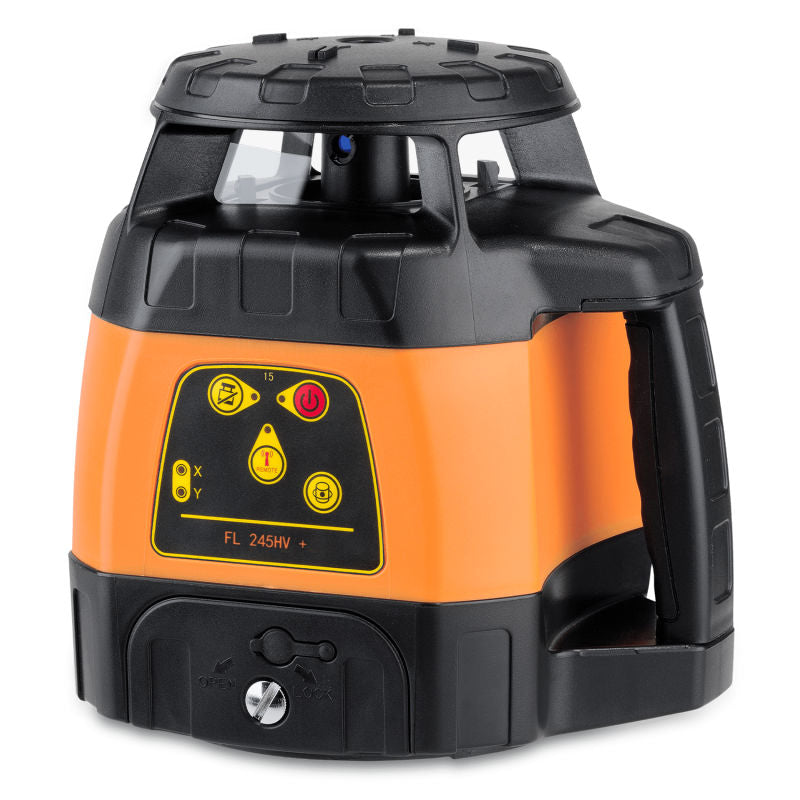

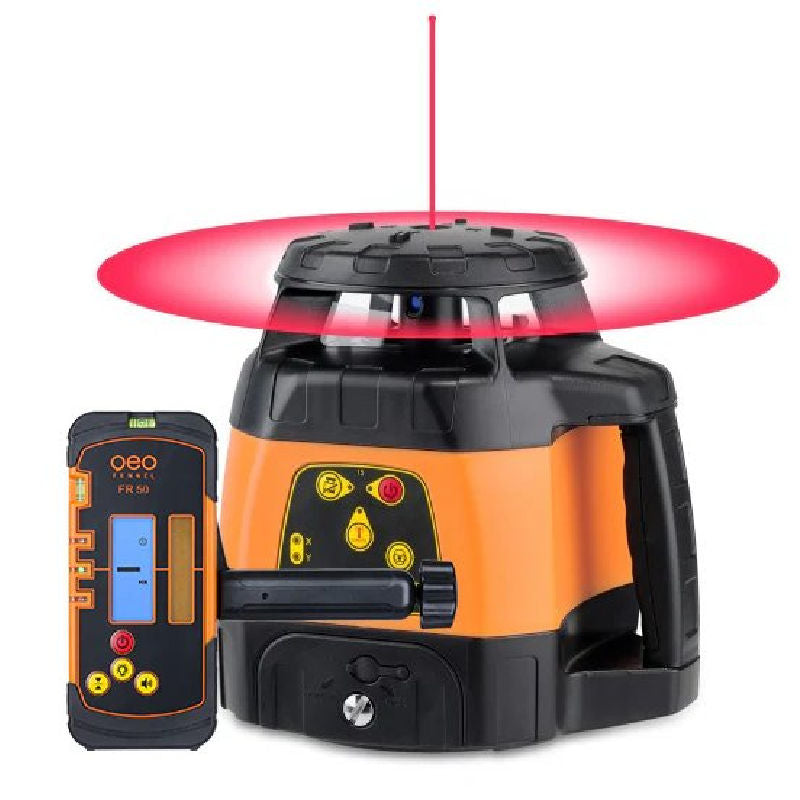

A professional multipurpose rotary laser for indoor and outdoor applications
The latest development in our 245 Series
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
- Long distance working range outdoors and outstanding line visibility for indoor applications
- IP 65 Class protection for all-weather conditions

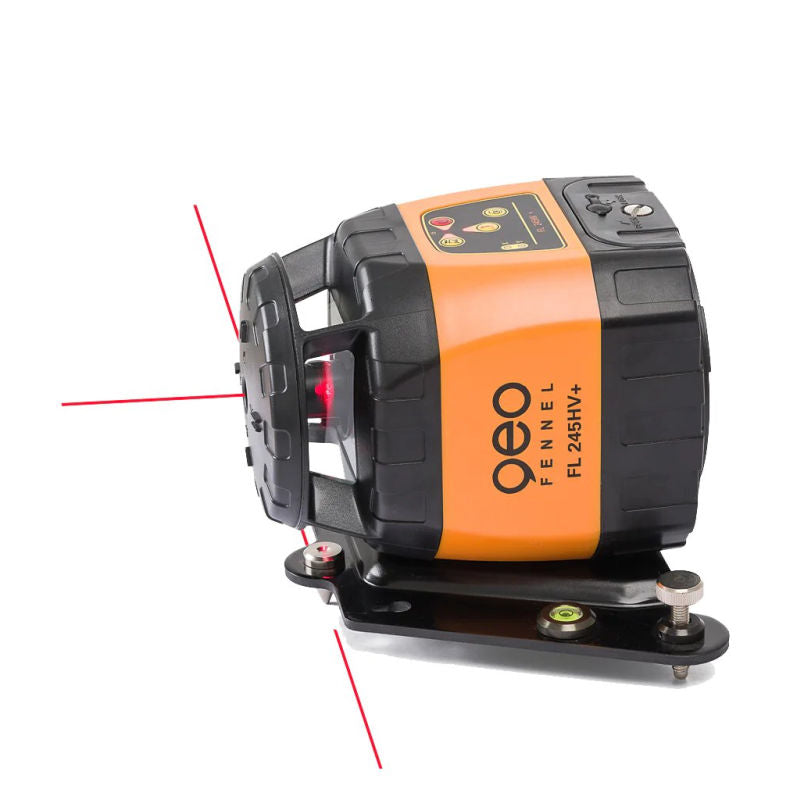

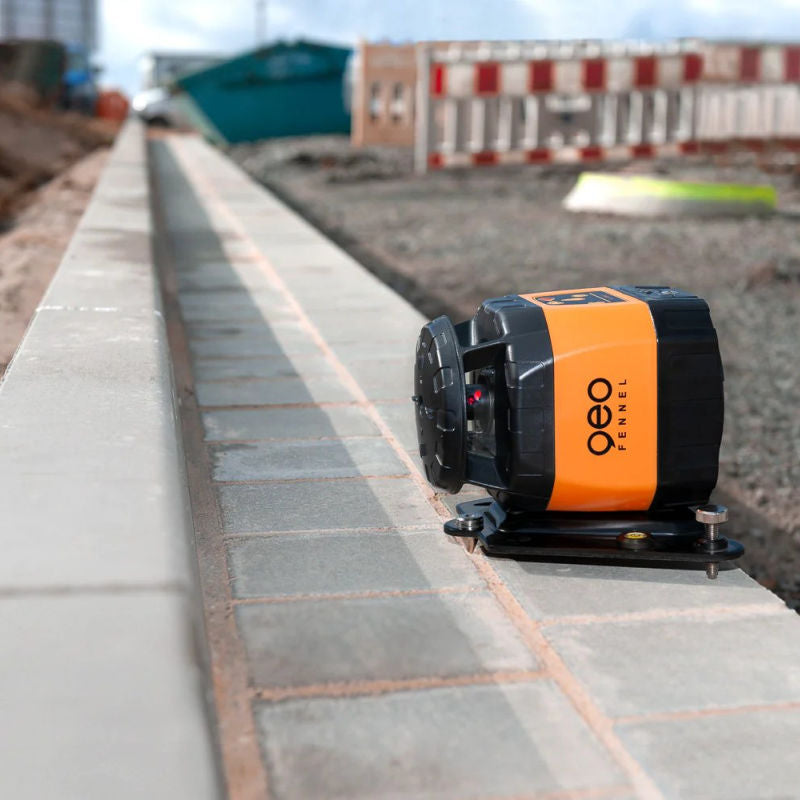

- Now includes a floor mount for easy axis alignment in vertical/laydown mode
User-friendly operating concept
- For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
- All additional functions including scanning and slope setting are accessed from the remote control
Highlights
- Indoor use: Outstanding line visibility without using a receiver.
- Versatile with rotating, scanning and point functions

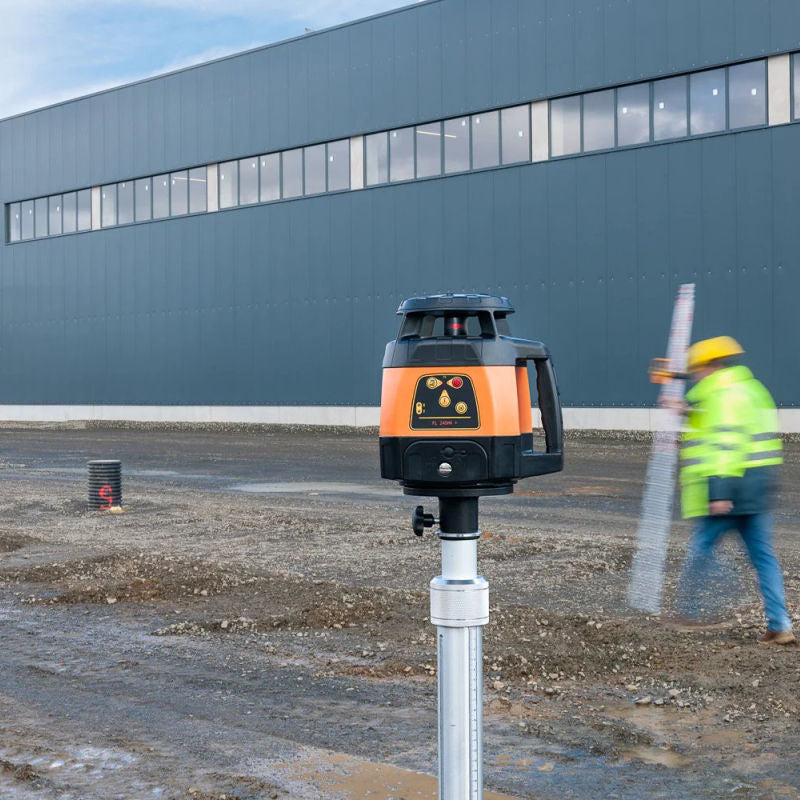

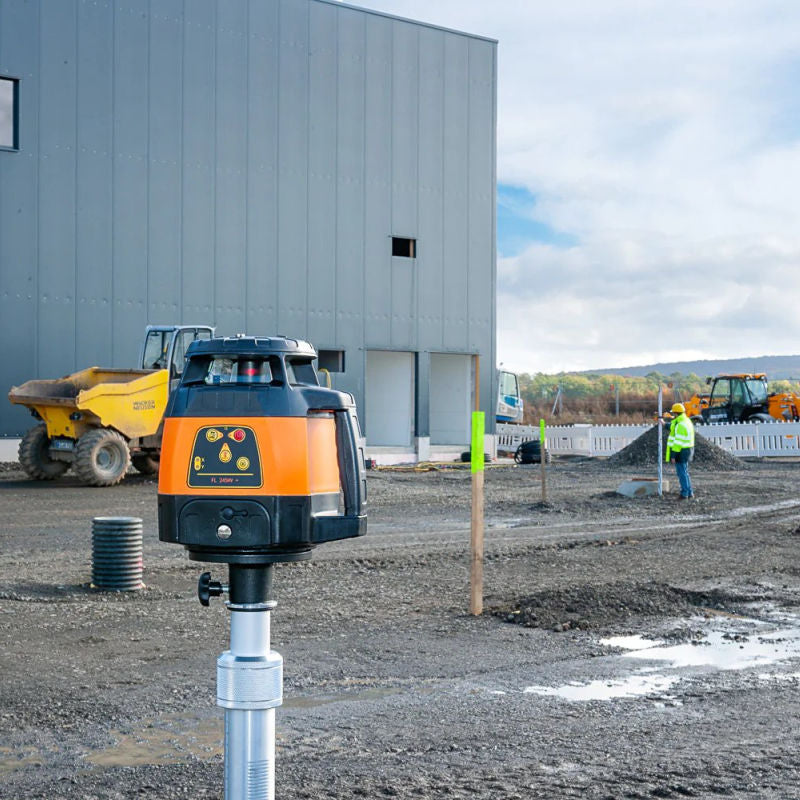

- Outdoor use: IP 65 protection, long working range, TILT-Function,
- Numerous accessories supplied as standard - check them out
Features
- Working range up to 1200m diameter (depending on receiver)
- Dust / water protection IP 65
- Variable scanning and laser point mode
- Permanent 90° plumb beam
- Automatic TILT alarm function
- Auto-shut-off when out of level
- Manual slope setting of X and Y axis
- Remote control function (on/off)
- Remote Control
- Rechargeable Battery
- Intelligent Battery Charger
- Wall Mount
- Floor Mount
- Battery Case for Alkaline Batteries
- Laser Glasses
- Magnetic Target
- Carrying Case
Specifications
| Laser diode: | red |
| Self-levelling range: | ± 5° |
| Grade: | manual |
| Accuracy vertical: | 1,0 mm / 10 m |
| Accuracy horizontal: | 0,75 mm / 10 m |
| Visible laser beam: | red |
| Working range without receiver: | Ø 60 m |
| Working range remote control: | IR 100 m |

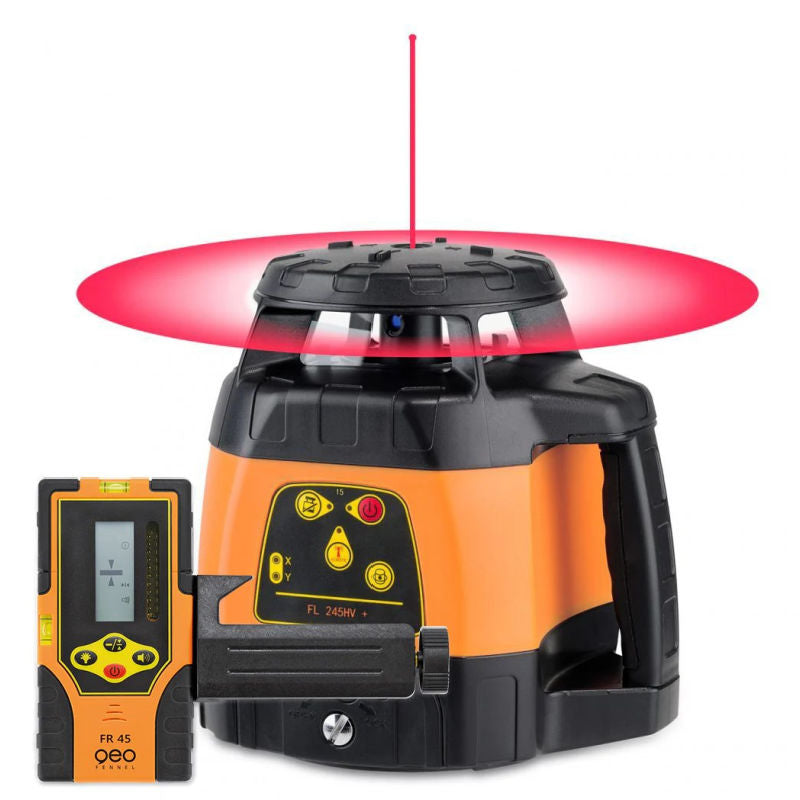

| Working area with FR 45: | Ø 1200 m |
| Slope setting manual X-Axis: | ± 5° (± 9%) |
| Laser point mode: | yes |
| Slope setting manual Y-Axis: | ± 5° (± 9%) |
| Power supply: | NiMH |
| Axis direction vertical: | yes |
| Rotating speed rpm: | 300, 800 |
| Scanning w/o receiver : | 60 m (radius) |
| Self-levelling: | horizontal / vertical |
| 90° plumb beam up: | yes |
| Dust / water protection: | IP 65 |
| Temperature range: | -20° to +50°C |
| TILT-function: | yes |
| Operating time: | 26 h |
| Remote control function (on/off): | yes |
| Laser class: | 2 |
| Scanning: | 2 step |
