Geo Fennel FL275HV Tracking Rotary Laser Level close image

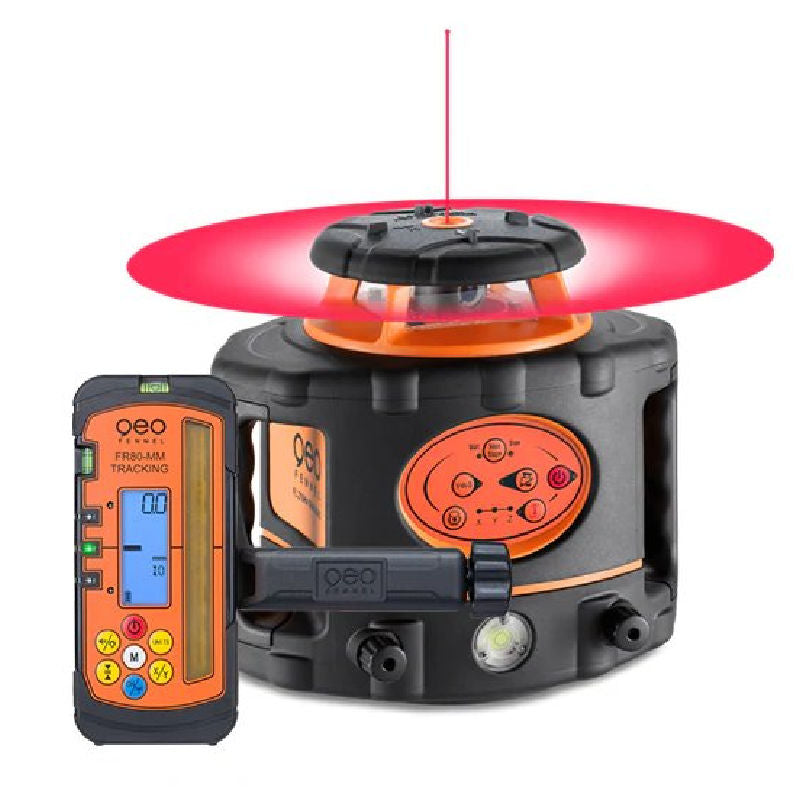

geo-FENNEL FL 275HV Tracking Rotary Laser Level with FR-80MM Tracking Receiver

by geo-FENNEL
$2,525.00

Notify me when back in stock

Description

geo-FENNEL FL 275HV Tracking Rotary Laser Level with FR-80MM Tracking Receiver

The latest generation of precise tracking rotaring lasers

  • New innovative low friction drive mechanism and self-levelling module
  • Accurate, robust and temperature stable
  • Low friction drive for reduced noise generation

User-friendly operating concept

  • For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
  • All additional functions including scanning and slope setting are accessed from the remote control
  • TRACKING-Function at the receiver
  • Robust remote control with 100 m range


Features

  • TRACKING function for automatic axis alignment horizontal and vertical
  • The laser plane is automatically centered to the receiver "on-grade"
  • Easy one-button operation of TRACKING function
  • Working range of TRACKING function 70 m

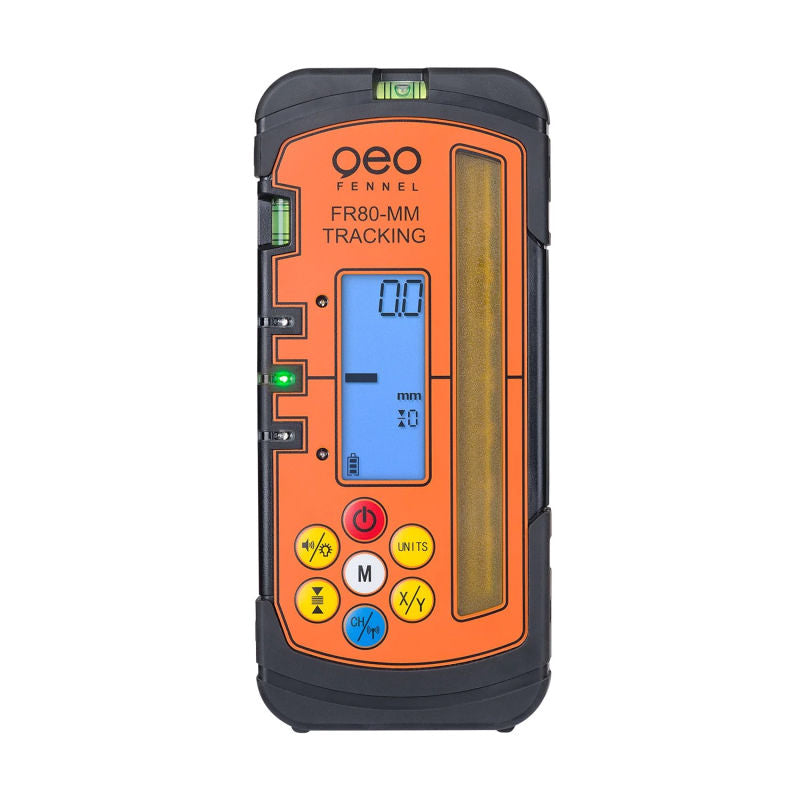

  • mm-indicating receiver FR 80-MM TRACKING

The visible accuracy!

  • Vertical: in both X and Y axis
  • Horizontal: one axis X or Y, opposite axis self-levelled
  • Dust / water protection IP 66
  • High accuracy of ± 0,5 mm / 10 m
  • Working range 400 m diameter
  • Enhanced scanning functions with small increments and a range up to 180°
  • Permanent 90° beam for right angles
  • Automatic TILT alarm function
  • VWS function (Vibration-Wind-Security)
  • Auto-shut-off when out of level
  • Remote control function on/off: to avoid interference with other remote controls or mobile devices
  • Manual slope setting of X and Y axis or auto self-level of opposite axis
  • Floor mount with centring mark for accurate set up above a ground point
  • Li-Ion battery technology


Specifications

Self-levelling range ±5°
Laser class 2
Accuracy horizontal ± 0,5 mm / 10 m
Accuracy vertical ± 1,0 mm / 10 m
Working range with receiver FR 80-MM Tracking
Working range tracking function 70 m
Manual slope setting X axis ±5° (±9%)
Manual slope setting Y axis ±5° (±9%)
Working range remote control IR 100 m
Rotating speed 300, 800
Operating time 30 h Li-Ion
Temperature range -20° – +50°C
Dust / water protection IP 66

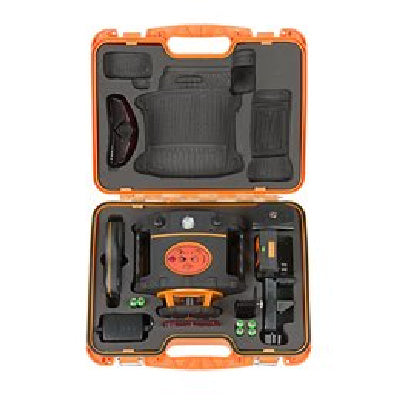

Includes

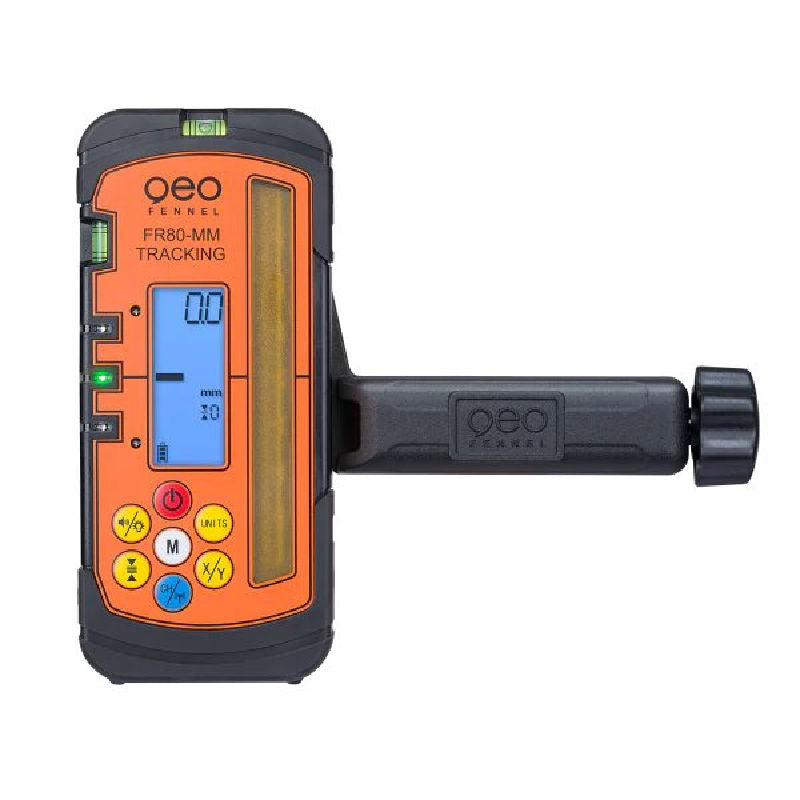

  • Receiver FR 80-MM Tracking with clamp for levelling staff

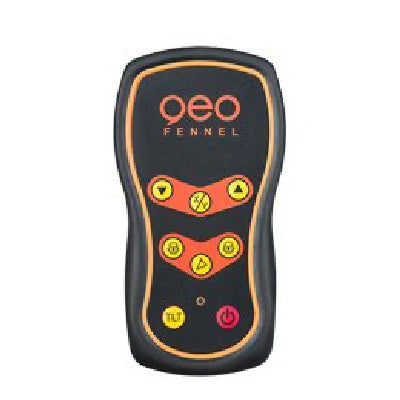

  • Remote control
  • Rechargeable batteries
  • Charger
  • Battery case for alkaline batteries
  • Floor mount
  • Magnetic target
  • Laser glasses
  • Carrying case
