Description

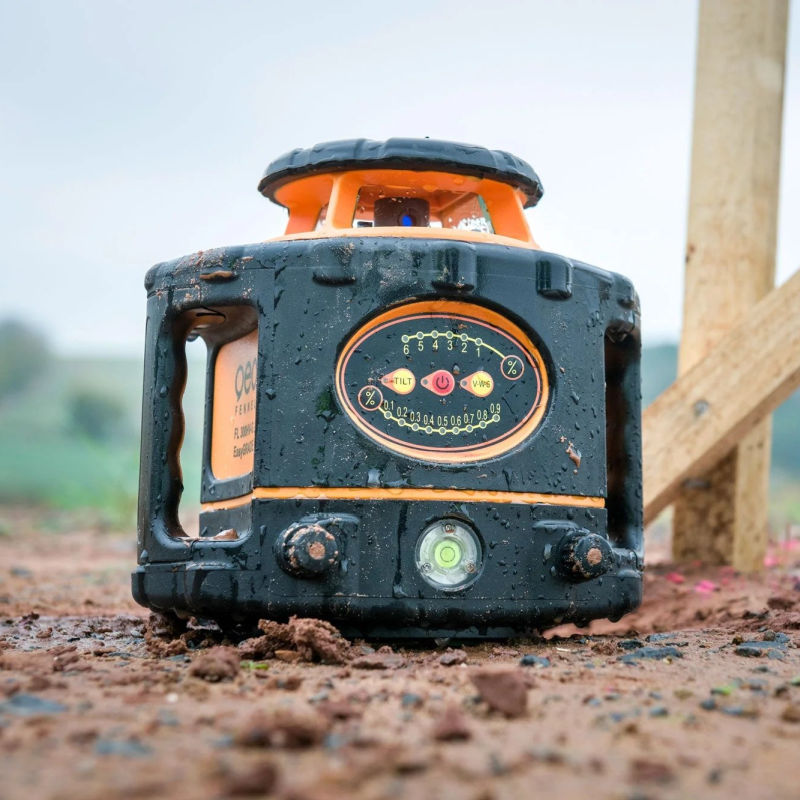

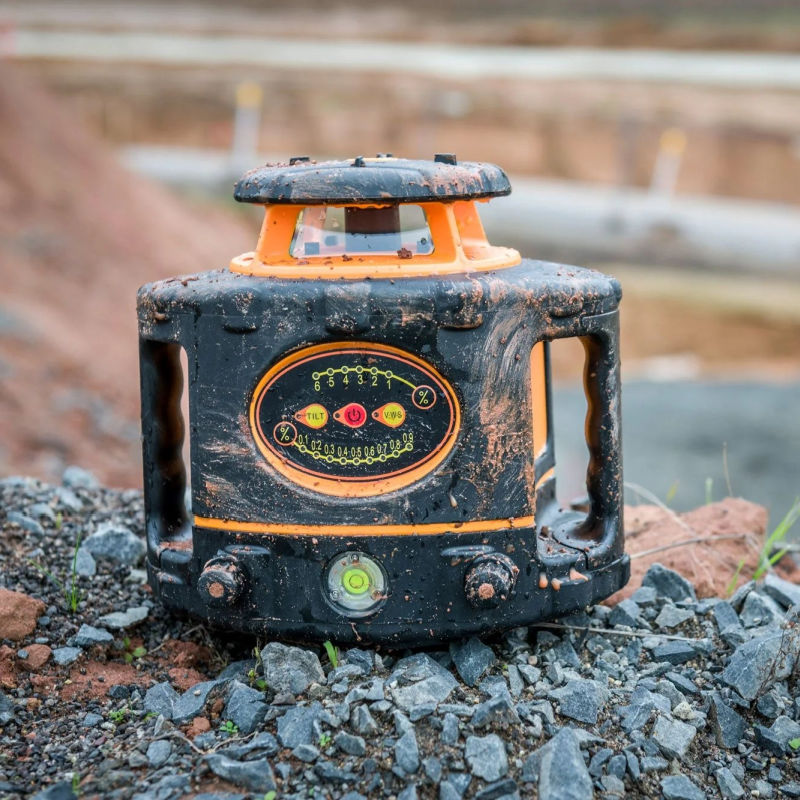

geo-FENNEL FL 300HV-G Easy GRADE Rotating Laser with Receiver
The easiest Grade Laser!
Many users find dual-axis grade lasers too complicated, expensive or overloaded with features. The FL 300HV-G EasyGRADE brings a new meaning to user friendly and ease-of-use!
- Simply press the „%“ buttons on the keypad to set the desired grade of X-axis - it‘s as easy as that.

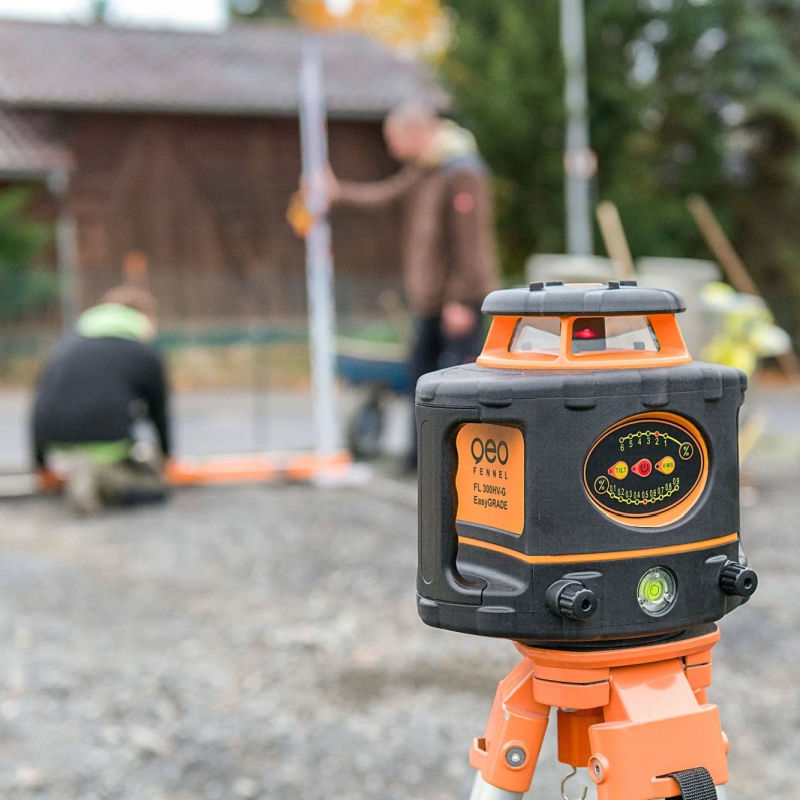

- Ideal for setting-out gradients for surface drainage, paving, landscaping etc.
- The range from 0.1% to 6.9% covers the majority of on-site tasks
2nd axis (Y)
- Horizontal: Self-levelled -or- manual grade setting with remote control
- Vertical: axis direction with remote control
Highlights
- Easy single grade setting, long working range, TILT-/VWS-Measuring security functions
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
- IP 66, high accuracy, robustness, Li-Ion battery
Features
- HORIZONTAL
- Self-levelling
- Numerical grade setting in X-Axis
- Manual grade setting in Y-Axis with remote control
- VERTICAL
- Self-levelling
- Axis direction in Y-Axis with remote control
- TILT function
- VWS function (Vibration-Wind-Security)

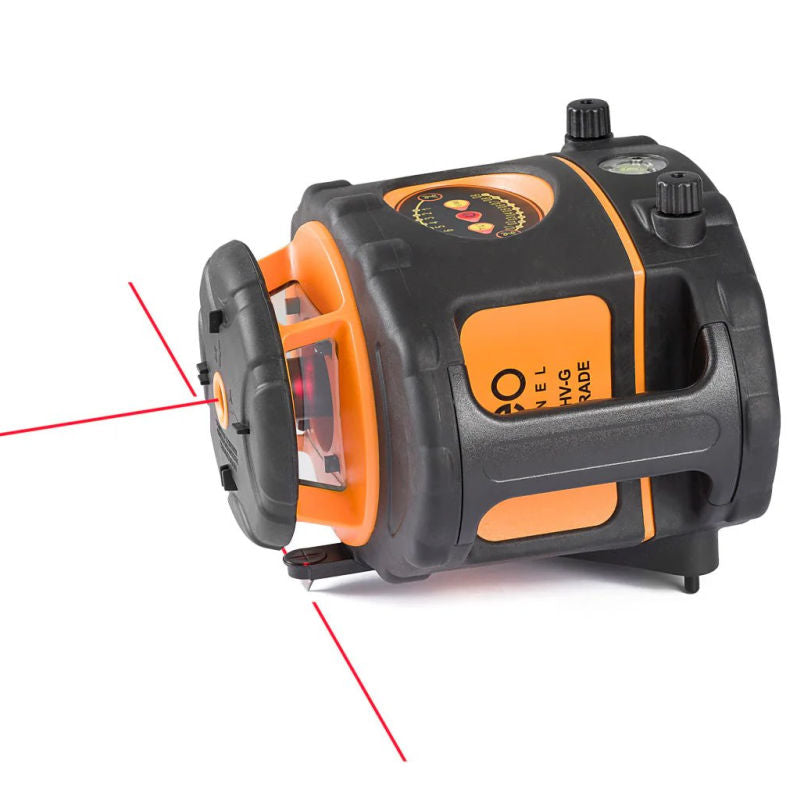

- 90° beam to zenith
- Dust / water protection IP 66
Specifications
- Self-levelling range ±5°
- Laser class 2
- Visible laser beam rED
- Horizontal accuracy ± 0.75 mm / 10 mm
- Vertical accuracy ± 1mm / 10 m
- Working range with receiver (diameter)

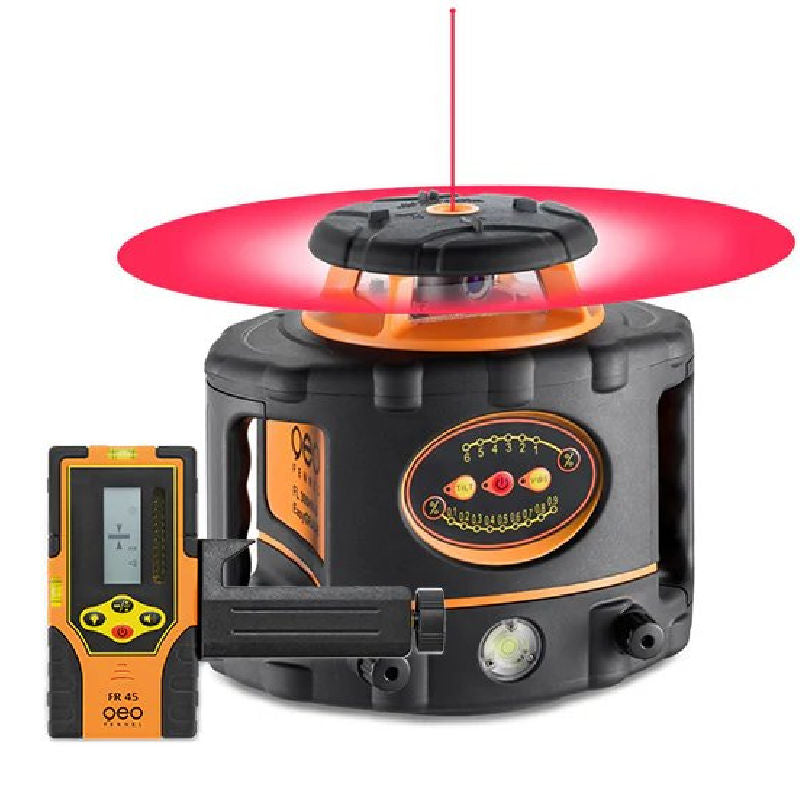

- with FR 45 1200 m
- with FR-DIST 30 600 m

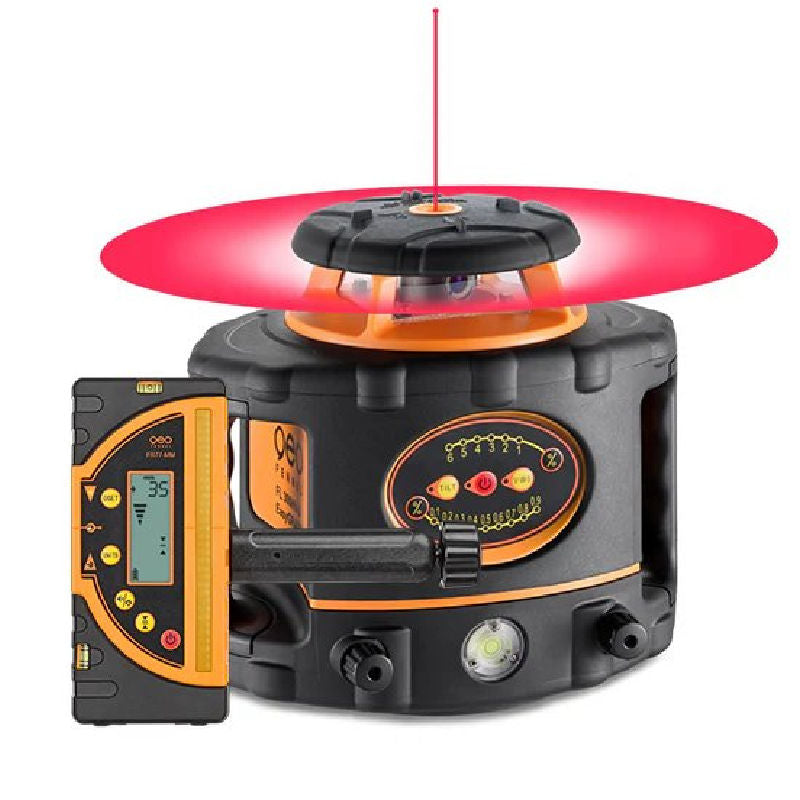

- with FR 77-MM 600 m
- 90° plumb beam up yes
- Slope setting / axis direction
- HORIZONTAL
- Grade setting in X-Axis
- + 0.1 to 6.9% (at 0.1% step)
- Y-Axis self-levelled -or- manual grade setting ±5° (±9%)
- VERTICAL
- Vertical axis direction ±5°
- 2nd axis self-levelled
- Automatic TILT function yes
- VWS yes
- Remote control working range IR 100 m
- Rotating speed 800 rpm
- Operating time 40 h Li-on
- Temperature range -10° to + 50°
- Dust / water protection IP 66

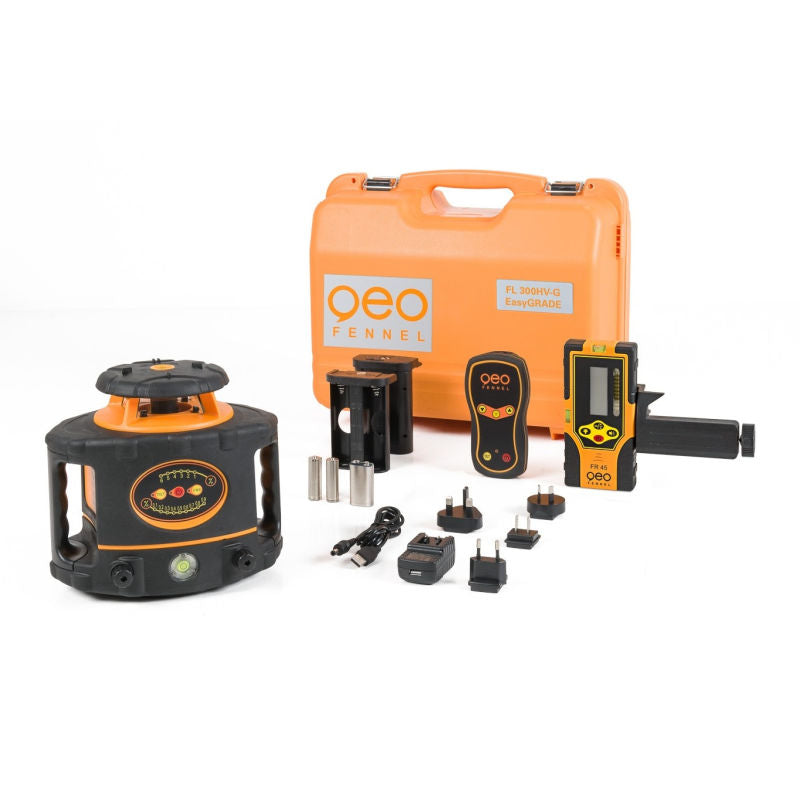

Includes

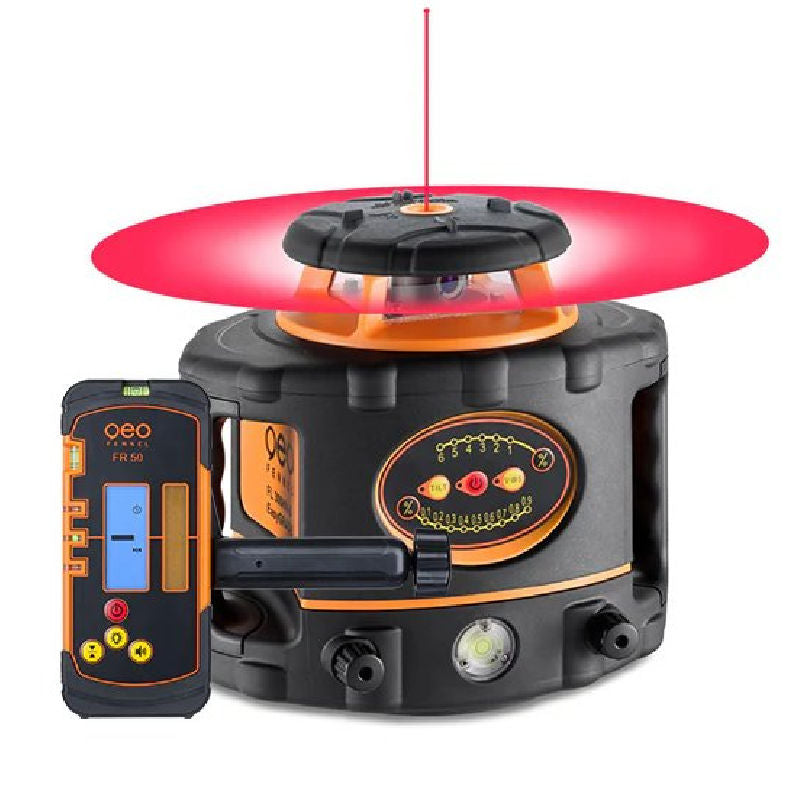

- Receiver with clamp

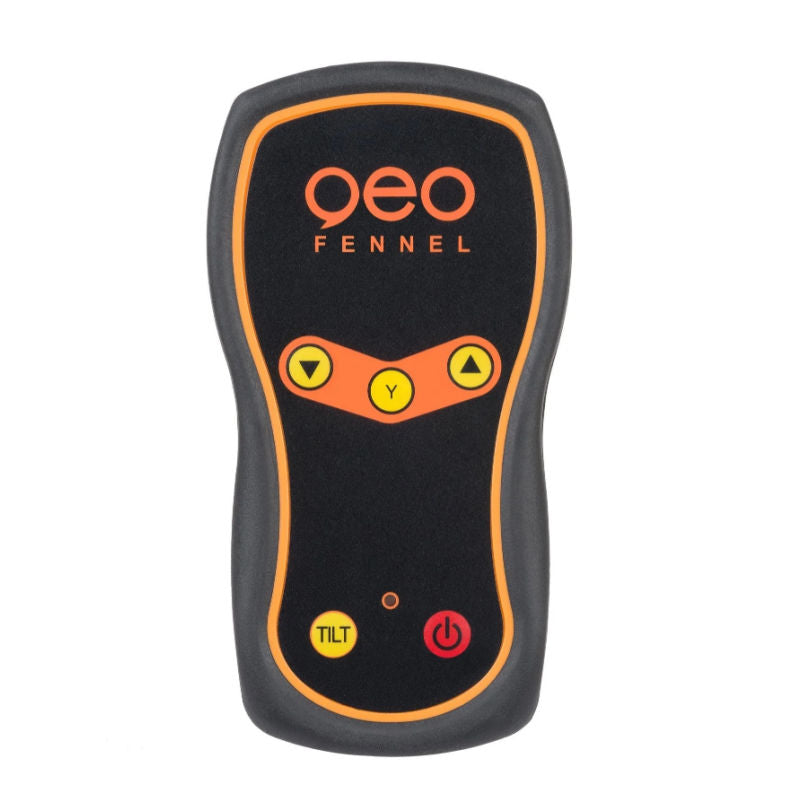

- Remote control
- Rechargeable battery (Li-Ion)
- Intelligent battery charger
- Battery case for alkaline batteries
- Floor mount (integrated)
- Carrying case
