Geo Fennel FLG 245HV GREEN TRACKING Rotary Laser Level close view

geo-FENNEL FLG 245HV Green Tracking Rotary Laser Level with FR 77-MM Tracking Receiver

by geo-FENNEL
$2,521.00

Notify me when back in stock

Description

geo-FENNEL FLG 245HV Green TRACKING Rotary Laser Level with Receiver

    The Indoor & Outdoor Alignment Pro


    • Accurate, robust and temperature stable
    • Low friction for reduced noise generation

    User-Friendly Operating Concept

    • For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
    • All additional functions including scanning and slope setting are accessed from the remote control
    • TRACKING function at the receiver

    Improved Performance

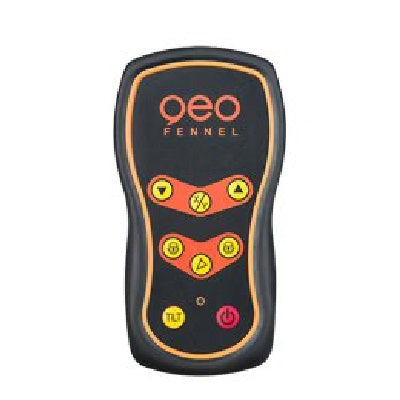

    • Robust remote control with 100 m range

    Features

    The ultimate solution for interior applications!  Automatic axis alignment combined with perfect laser line visibility.

    • Green laser for enhanced visibility in laser class 2 without power loss

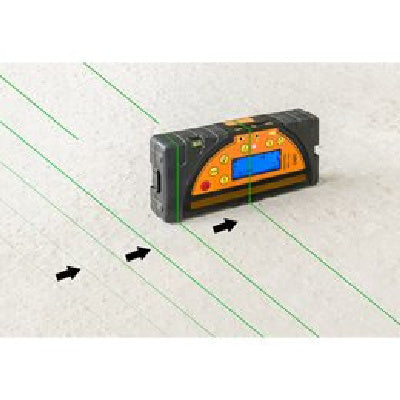

    • TRACKING function: The laser plane is automatically centered to the receiver "on-grade". Makes alignment jobs over long distances amazingly simple

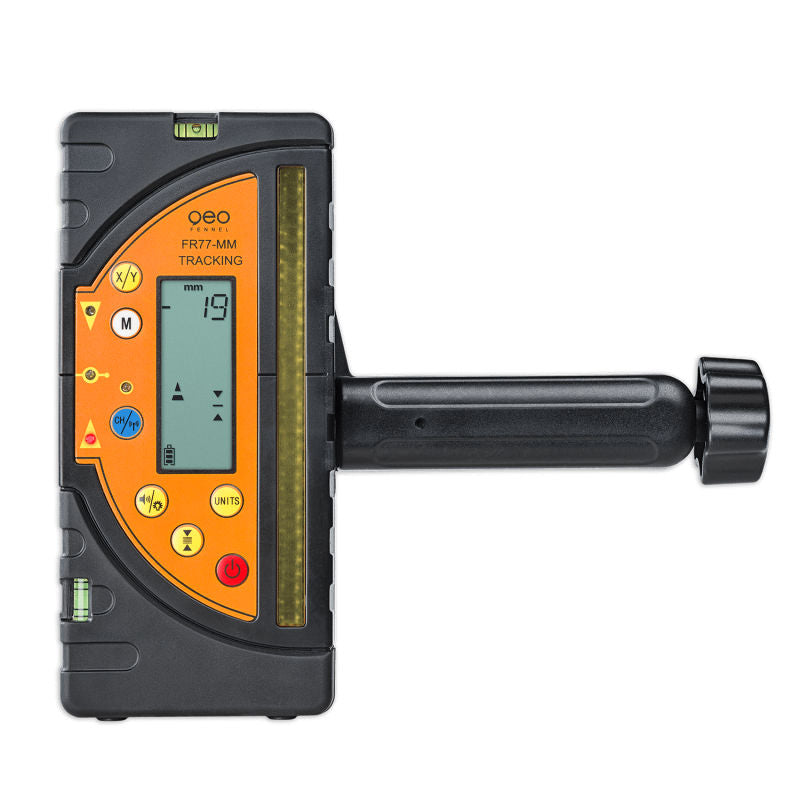

    • mm-indicating receiver FR 77-MM TRACKING
    • Easy one-button-operation of TRACKING function
    • Working range of TRACKING function 60 m
    • Working range 1000 m diameter
    • Dust / water protection IP 54
    • Scanning and laser point function
    • Permanent 90° beam for right angles
    • Automatic TILT alarm function
    • Auto-shut-off when out of level
    • Manual slope setting of X and Y axis or auto self-level of opposite axis
    • Remote control function on/off: to avoid interference with other remote controls or mobile devices
    • Floor mount with centering mark for accurate set up above a ground point

    Includes

    • Receiver FR 77-MM Tracking Receiver with clamp for levelling staff
    • Remote control
    • Rechargeable batteries
    • Charger
    • Battery case for alkaline batteries
    • Floor / wall mount
    • Magnetic target
    • Laser glasses
    • Carrying case

    Specifications

    Self-levelling range ±5°
    Laser class 2
    Accuracy horizontal ±1,0 mm / 10 m
    Accuracy vertical ±1,5 mm / 10 m
    Working range with receiver FR 77-MM Tracking Ø 1000 m
    Working range tracking function 60 m
    Manual slope setting X axis ±5° (±9%)
    Manual slope setting Y axis ±5° (±9%)
    Working range remote control IR 100 m
    Rotating speed 300, 800
    Operating time 24 h NiMH
    Temperature range -20° – +50°C
    Dust / water protection

    IP 54
