geo-FENNEL FR 77-MM Tracking Laser Receiver for Rotating Lasers with clamp

geo-FENNEL FR 77-MM Tracking Laser Receiver for Rotating Lasers

by geo-FENNEL
$735.90

Notify me when back in stock

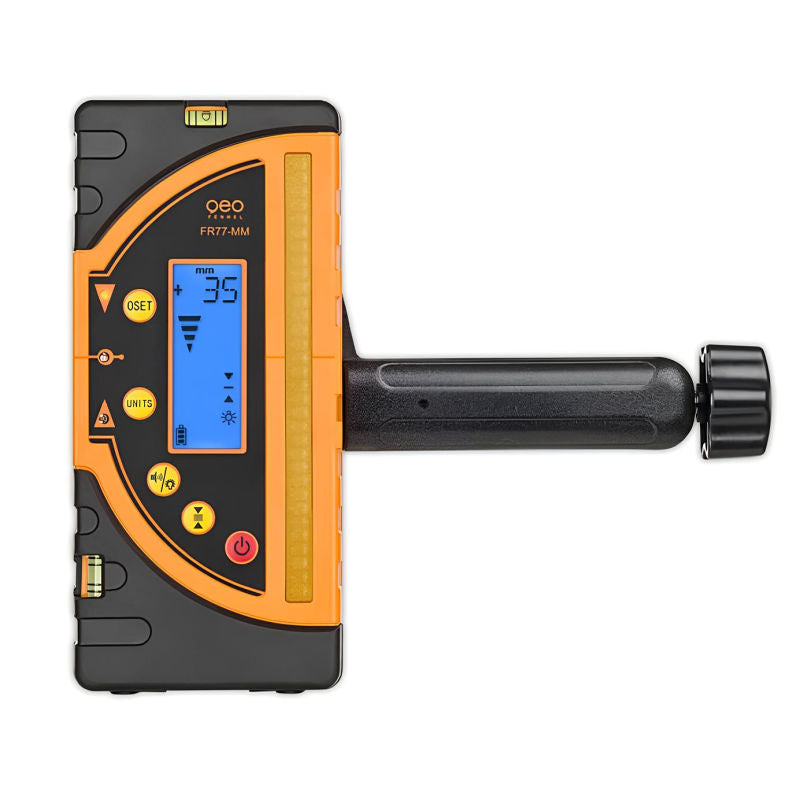

geo-FENNEL FR-77 MM Tracking Laser Receiver

German quality laser receiver with digital level indication in millimeters.

  • Extra long receiving window
  • mm-Indication of difference between laser plane and “0” level
  • “0” position can be defined (Offset)

Features

  • For rotating lasers using a red laser beam
  • Extra-long receiving window
  • mm-Indication of difference between laser plane and “0” level
  • Segments of display indication increase / decrease proportionally
  • “0”-Position can be defined (Offset)
  • Display illumination
  • Robust clamp
  • Special mount for divers connection e. g. at the scaffold

Includes

  • 4 x AA Alkaline
  • Clamp
  • Bracket
  • RF module to operate the tracking function

Specifications

3-step accuracy ± 2 / 5 / 9 mm
Accuracy mm-indication ± 1 mm
Working range class 2-Laser 150 m
Working range class 3R-Laser 350 m
Length receiving window 125 mm
Length receiving area mm-indication 100 mm
Offset range (0SET) from base line ± 20 mm
Measuring units mm, cm, in, fraction of in
Signal tones 3
Display indication front, back
LED indication front, side, back
Power supply / Operating time Alkaline / 110 h
Temperature range -10 °C to +50 °C
Display illumination yes
Magnets top, side
Vials top, side
Dust / water protection IP 67
Dimensions 170 x 77 x 32 mm
Weight  0.5 kg
