Description

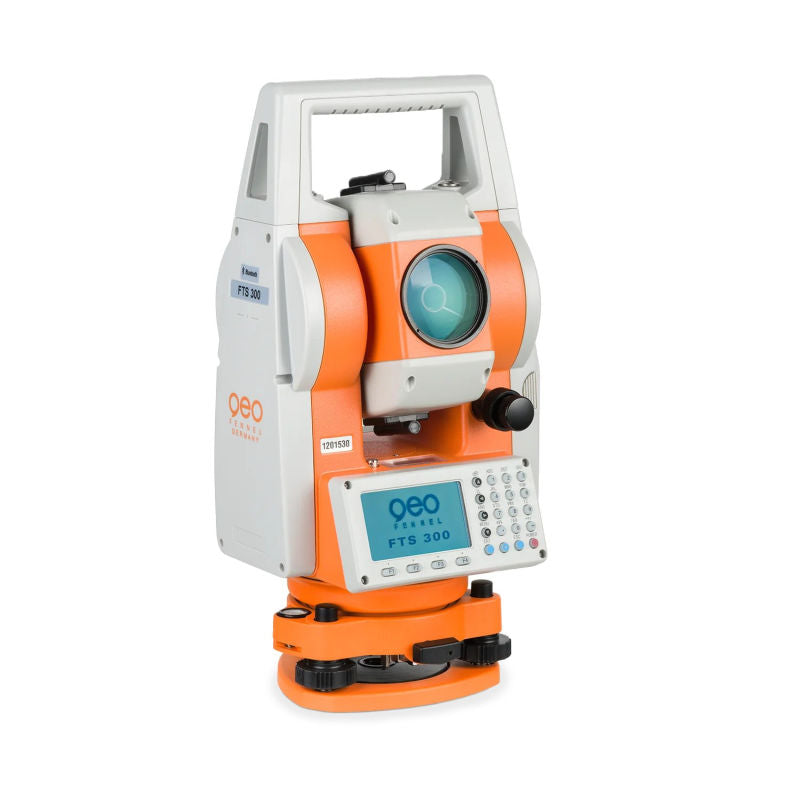

geo-FENNEL Total station FTS 300-BT (Bluetooth)
NOW WITH BLUETOOTH!
The geo-FENNEL Total station FTS 300 is an innovative solution with reflectorless distance measuring module with a range of over 600 m (with reflector up to over 5,000 m). Equipped with an electronic bubble level, FTS 300 offers an exceptionally powerful, cost-effective solution for a wide range of general and specialised applications in construction and engineering. Comes with an integrated and comprehensive software package!
Features
- Easy-to-use on-board software

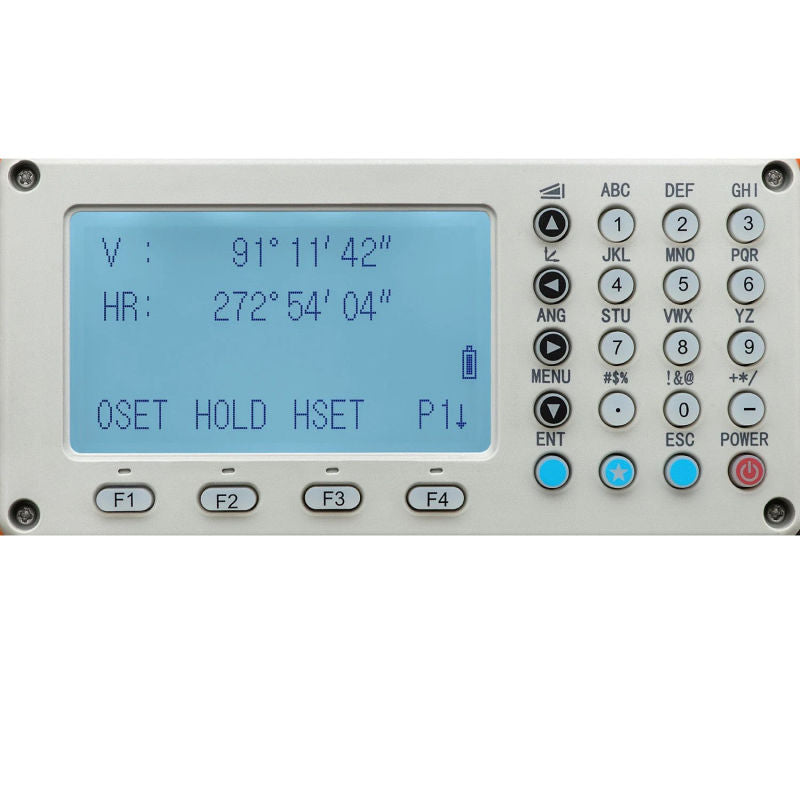

- Easy to read display also by direct sunlight
- Fast import and export of different data formats without an additional software
- Fast and accurate measurements
- Intensity of the laser plummet can be changed gradually
- Compact and smart design
Range of applications

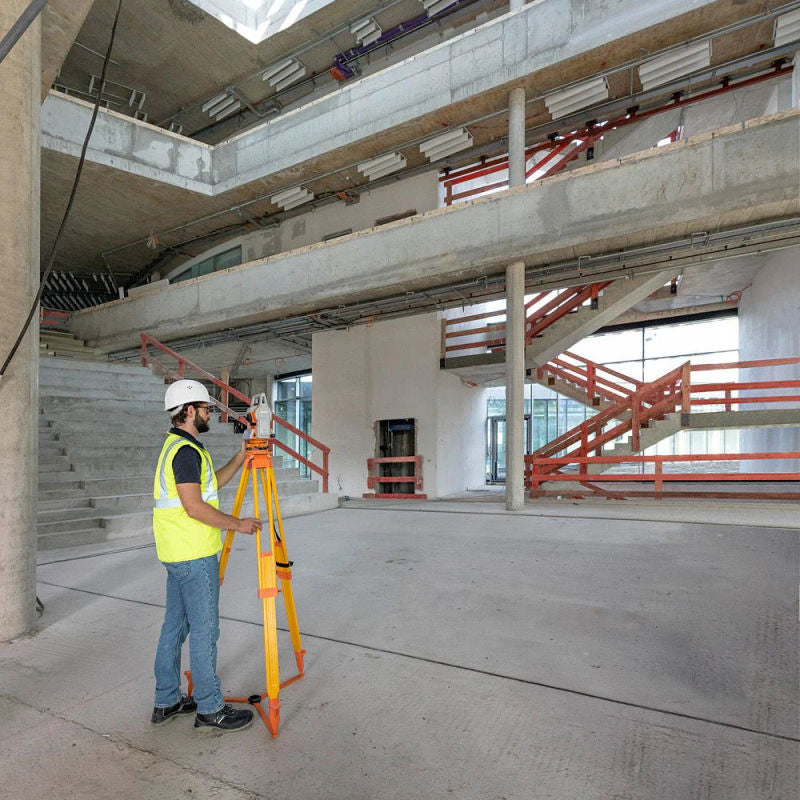

- Construction & engineering surveying
- Stake-out
- Point-to-line
- Height determination
- Free stationing
- Indirect height measurement
- Roads
- Area determination
- Right-angle coordinates, polar coordinates Point-to-point
Specifications
| Laser class: | 2 |
| Dust / water protection: | IP 56 |
| Extended size: | 190 x 210 x 350 mm |
| Temperature range: | -20°C to 55°C |
| Operating time: | 2 x 6 h |
| Visible laser beam: | ± 1.5 mm / 1.5 m |
| Accuracy: | +/- 2mm + 2ppm (working range), 2" (angle measurement) |
| Working range: | 1,5 - 600 m (Reflective tape target), 1,5 - 600 m (Reflectorless), 1,5 - 5000 m (Single standard prism) |
| Resolving Power: | 3" |
| Field of View: | 1°30' |
| Power supply: | NiMH |
| Plate level: | 30" / 2 mm |
| Range: | ± 3° |
| Axis: | 2 |
| Angle units: | 100 % / 360° / 400 gon |
| Minimum reading resolution: | 1'' / 5'' |
| Image: | Erect |
| Shortest focusing distance: | 1,5 m |
| Telescope magnification: | 30 x |
| Objective diameter: | 45 mm |
| Circular bubble: | 8' / 2 mm |
| Weight: | 6,5 kg |

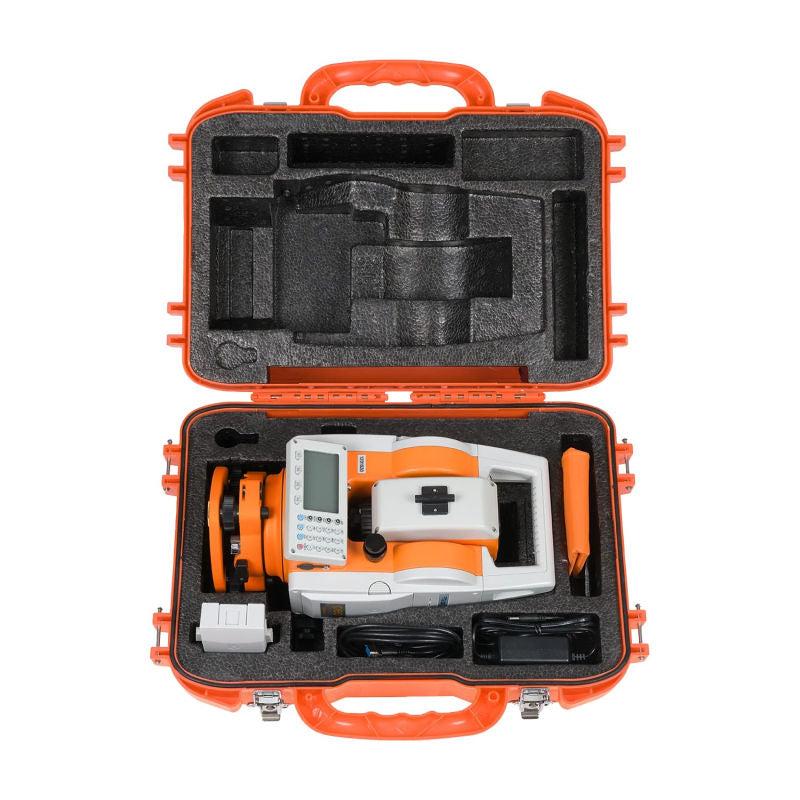

Included:
|
|
|
|
|
