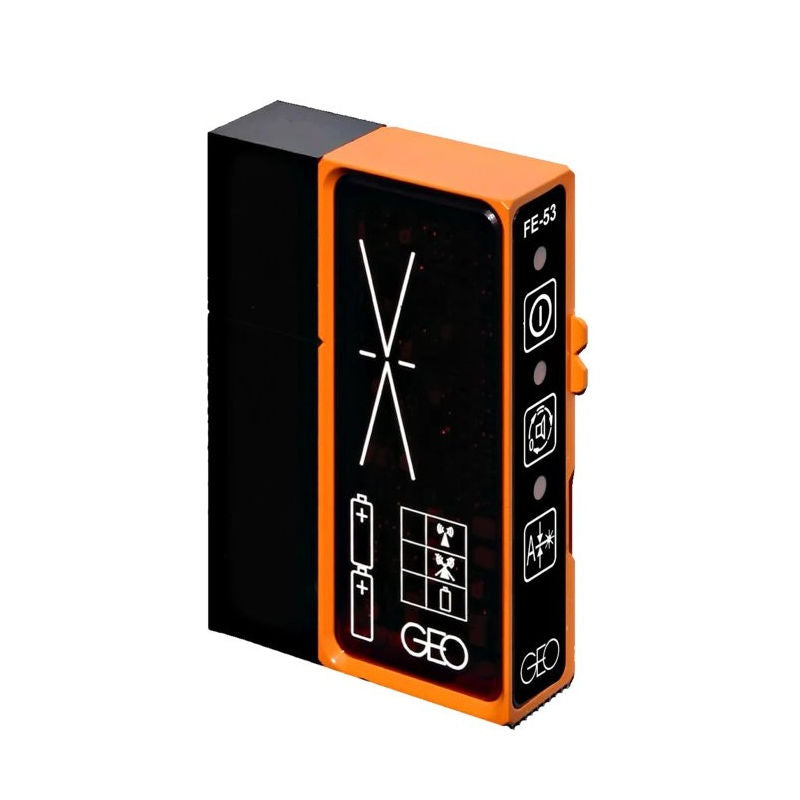

FE-53 Radio locking receiver for Y axis with battery and rod clamp

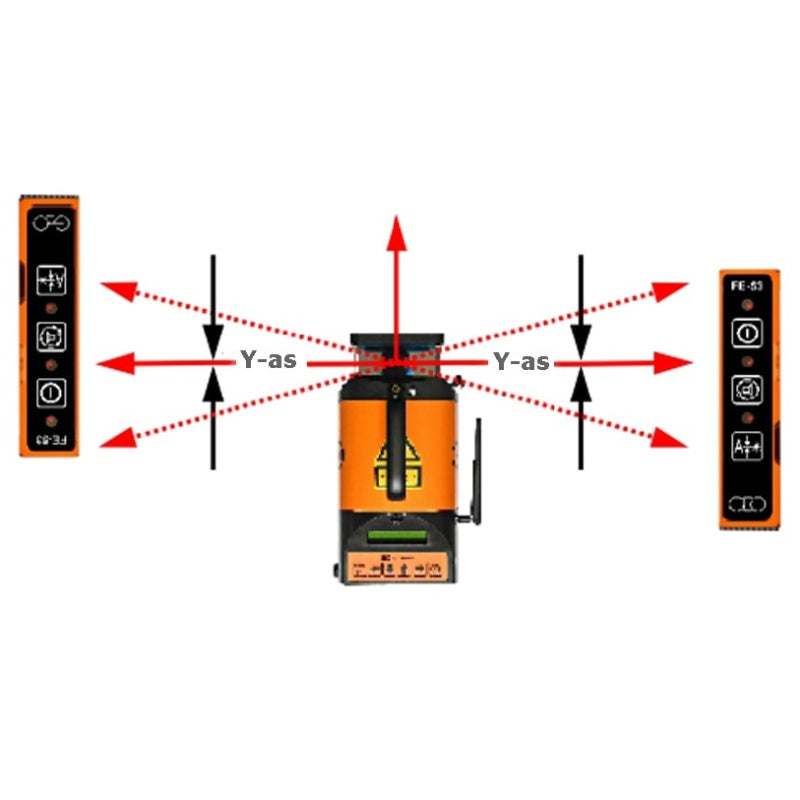

Automatic search, finding and locking of the alignment (direction).
Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the center and fixed there.
Accuracy: to ± 1 mm/100 m
Please note: The serial numbers of laser and FE-53 must be the same. Simultaneous operation of FE-53, FE-61 and FB-10 is not possible.
Long range
Range with RL-79L up to 500 m, with NL-9V, NL-9, NL-8 up to 350 m, with PL-95L up to 100 m.
SPECIFICATIONS
| Operating time | up to 20 hours |
|---|---|
| Power supply | 2 x mignoncell/AA (rechargeable or non rechargeable) |
| Waterproof | yes |
| Dimensions | 140 x 100 x 32 mm |
| Weight | 0.52 kg |
| Guarantee | 24 month |
| Rotor speed | 300 - 800 rpm |
| Current consumption | approx. 100 mA |
| Housing | watertight, except battery compartment |
| Working distance | 2 - 200 m depending on which laser is used |
| Frequency range | 2.4 Ghz ISM band |
| Transmitting power | < 100 mW (EIRP) |
| Reception area | 85 mm / > 100° |
| Accuracy measuring receiver | ± 1 mm or ± 0.1 mm |
| Accuracy direction automatic | up to ± 1 mm/100 m |
| Distance to lamps and powerlines | > 1.5 m |
