Description

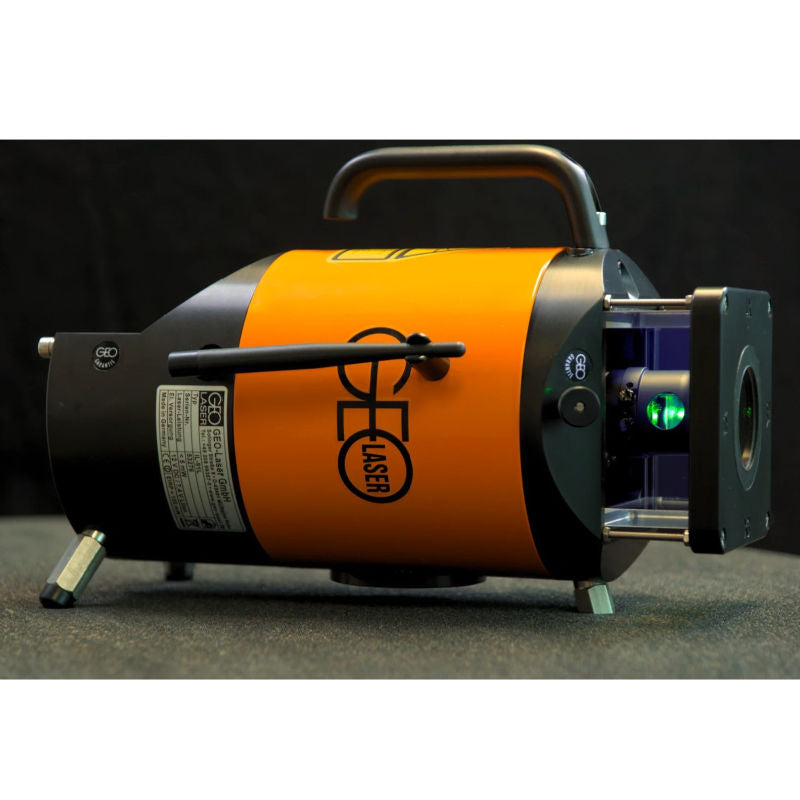

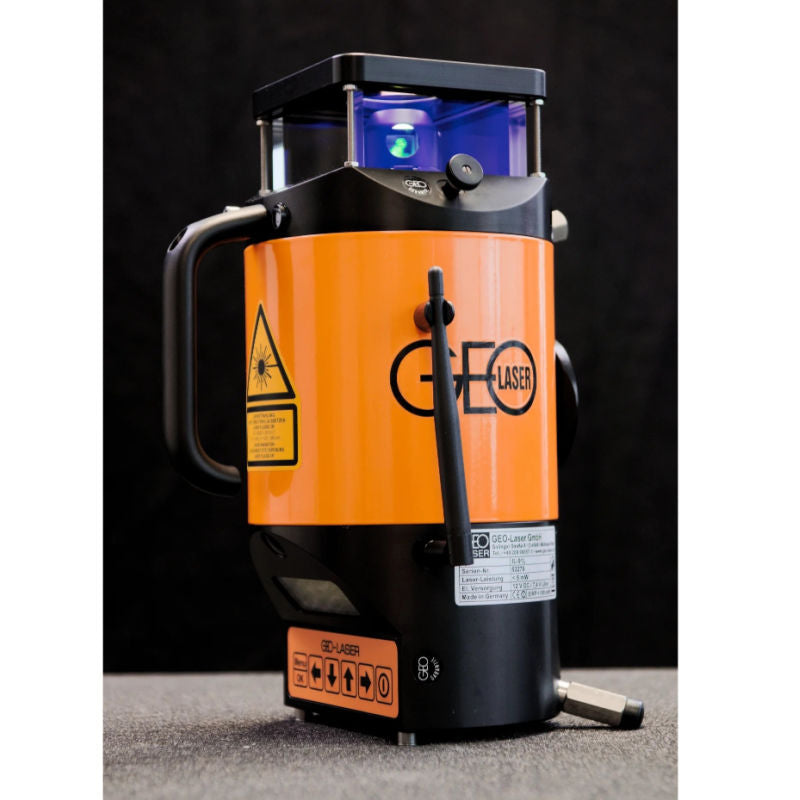

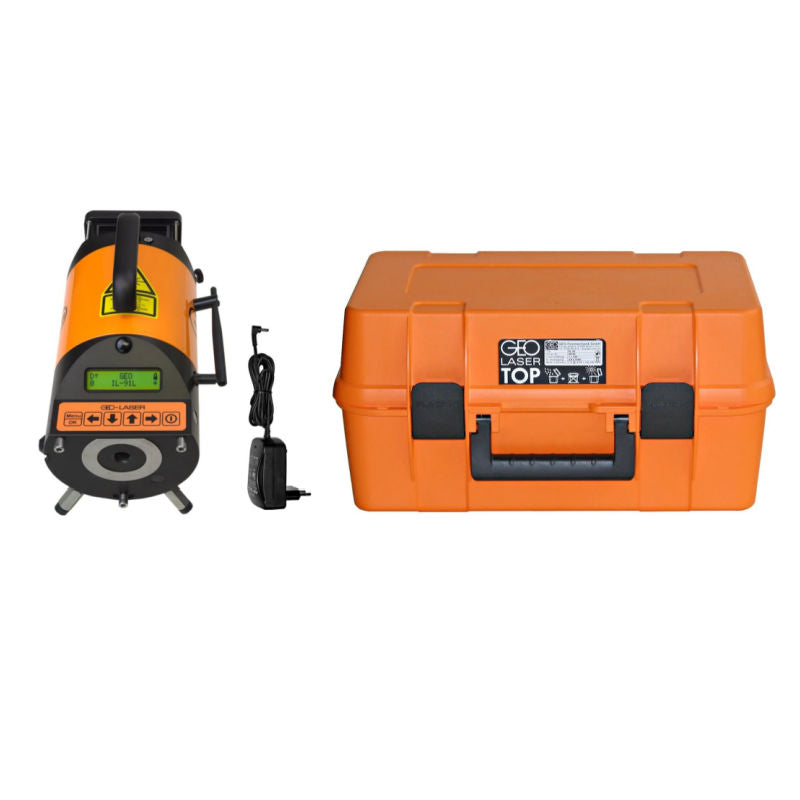

GEO-Laser IL-90L Automatic Interior Green Beam Construction Laser Level
FEATURES
-
Fully Automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down. -
Scan operation
Generates a limited, significantly brighter laser beam line. -
Special laser beam quality
Diode laser with visible thin, green beam, high-powered lens, high life expectancy and low power consumption -
Lithium ino rechargeable battery
Cordless laser operation for 21 hours, makes the user independent of external power sources. Recharged in four hours. -
Robust metal housing
Plastic coated, swept and filled with nitrogen, 100 % watertight. -
Remote controllable
With optional available remote control FB-10 or with our free app "GEO-Remote". -
Automatic locking of axis
Control and fixing of axis with optional available locking receivers FE-53 GN.
The automatic rotary laser IL-90L is an all-round laser for horizontal and vertical use capable of electronic self-levelling over three axes. Equipped with a beam split prism in the rotor head, it can also be used as a square or plumb laser. It emits a stationary or rotating laser beam, which turns into a light plane. Although it was specially developed for interior installation works, it can also be used for many other purposes.
The green laser beam now also improves visibility of the beam in difficult light situations in interior construction applications in the usual GEO quality. The reasons for this are that the human eye is about four times more sensitive to green light than red light and green light is not outshone by the reddish solar spectrum as strongly.
The internal installation lasers of the latest generation also have a radio module that enable use of them with our locking receivers. This allows easy control of the light plane in the room. As soon as the receiver detects the light plane, it is automatically moved to the position defined by you. Deviations are recognised immediately and the system automatically adjusts the plane.
With the help of the locking receiver, the laser plane can be aligned automatically to the necessary building axis in the simplest of ways.
And if you are working on a swaying or crooked platform, e.g. in shipbuilding, the horizontal laser plane can also be locked in both axes using two locking receivers.
When working by sight under difficult light conditions, the laser can be switched from rotary to laser scan mode. The laser then projects only an adjustable broad line, which is significantly easier to see than the rotating beam.
The IL-90L can additionally be controlled from a distance with the optional FB-10 remote control or with the free app “GEO-Remote”.
And even the most adverse conditions of use are no problem for this internal installation laser: like all GEO lasers, the IL-90L is absolutely watertight and the robust full-metal housing filled with nitrogen.
The IL-90L falls in the laser class 2, but is also available as IL-91L in the stronger laser class 3R.
SPECIFICATIONS
| Laser class | 2 < 1mW |
|---|---|
| Laser | diode laser, visible red, 520 nm |
| Laser range | up to Ø 200 m |
| Beam diameter at laser | 5 mm at laser |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 0.005 % |
| Operating time | up to 21 hours |
| External power supply | 11 to 14 V DC with cable 0117.00 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to + 50° C |
| Weight | 3.4 kg |
| Guarantee | 24 month |
| Rotor speed | adjustable in steps: 0, 100, 300, 600, 800 rpm |
| Automatic function | horizontal and vertical |
| Automatic function can be switched off | yes |
| Adjustment | Possible in the field without opening the device |
| Locking automatic laser light plane | yes |
| Locking automatic plumb beam | yes |
Quality Guarantee
GEO-Laser's lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as the rigorous quality assurance process are guarantors of high functionality and a long service life. All devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
