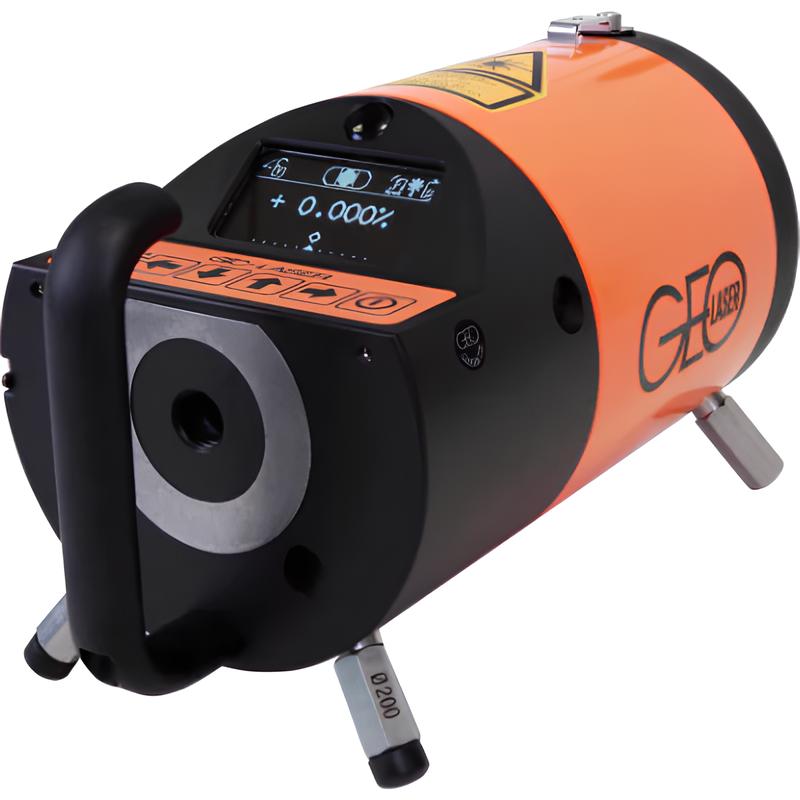

GEO-Laser KL-901 Green Beam Pipe Laser Level
The latest generation of GEO-Laser's uncompromised German quality pipe laying lasers!
Simple and intuitive operation on the construction site. The class 3R green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. High-contrast, easy-to-read graphic OLED display.

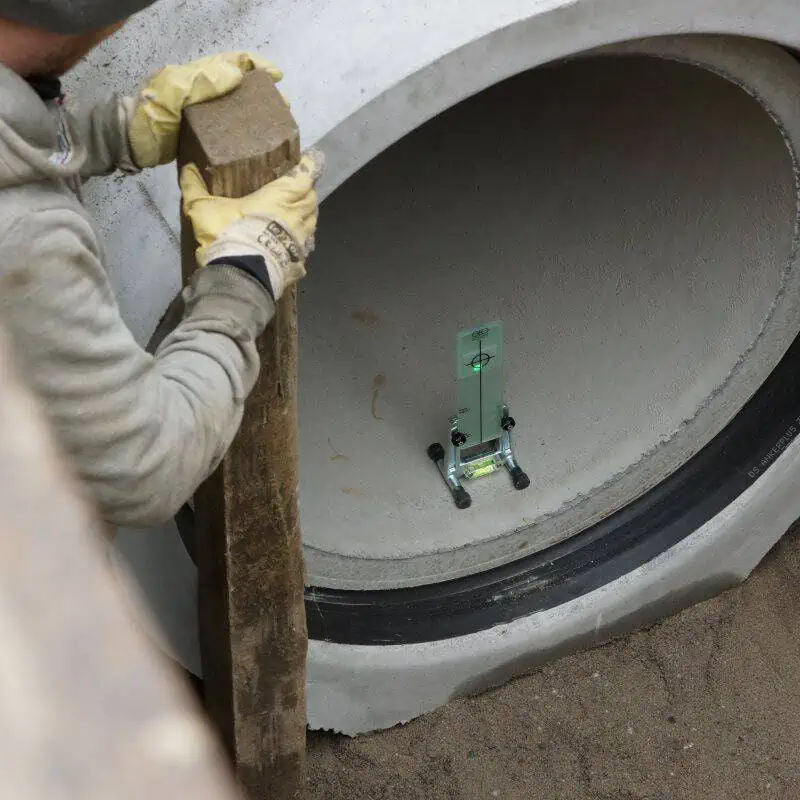

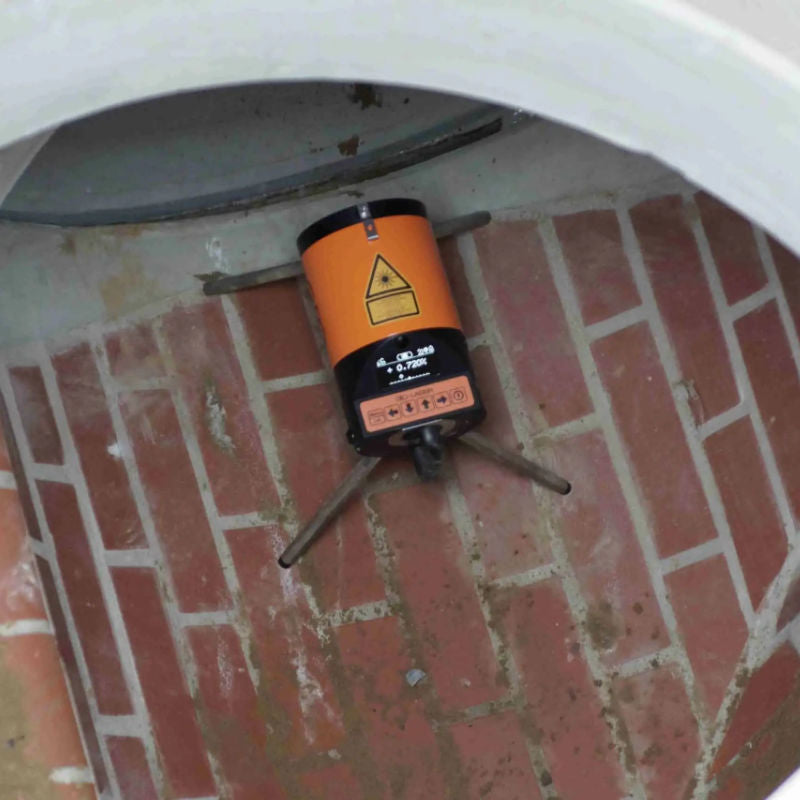

GEO-Laser pipe laser emits an automatically levelled or defined inclined laser beam as reference axis. It was specifically designed for pipe laying, but can also be used for a variety of other purposes. It can be set up centrically or at a constant distance above the pipe invert.
Features
-
Laser class
Laser class 3R, laser power < 5 mW Special features: laser power adjustable in 5 steps. -
Fully automatic
Automatic levelling, banking compensation, inclination zeroing, direction centering and cut-out in case of undervoltage or jerky movement. -
Robust metal housing
Anodized, plastic-coated, filled with nitrogen, 100% watertight. -
Special laser beam quality
Diode laser with visible green laser beam, high life expectancy and low power consumption. The human eyes are 4 times more sensitive for green light rather then red light. -

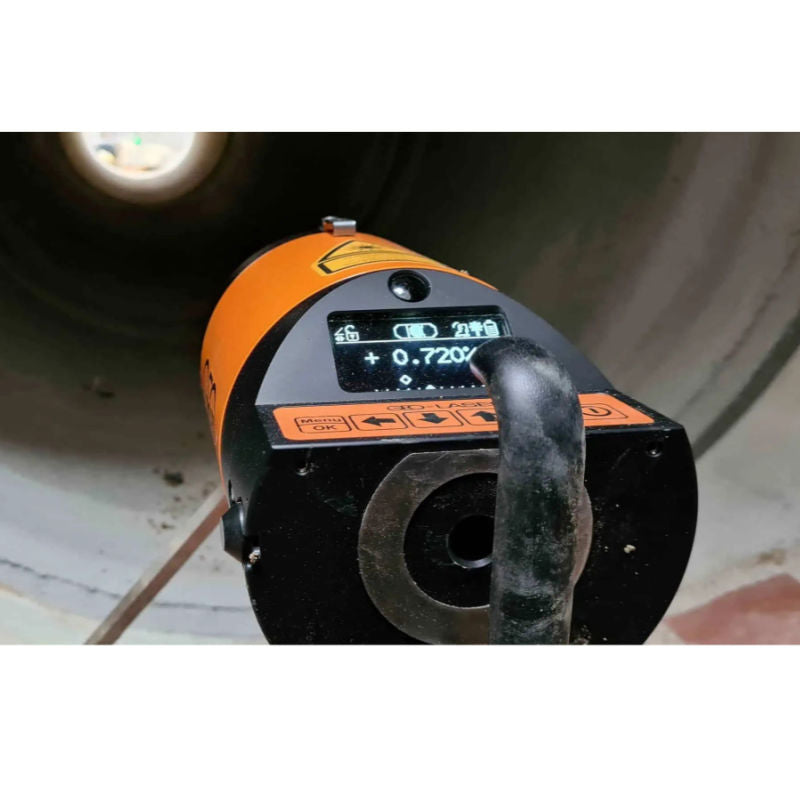

Easy-read OLED display
The brightly illuminated display ensures very good readability even in difficult lighting conditions. The graphic displays, especially in the settings, are intuitive and easy to understand and simplify operation considerably. -
Easy to use keyboard
Clear, functional, large user-friendly keys. -

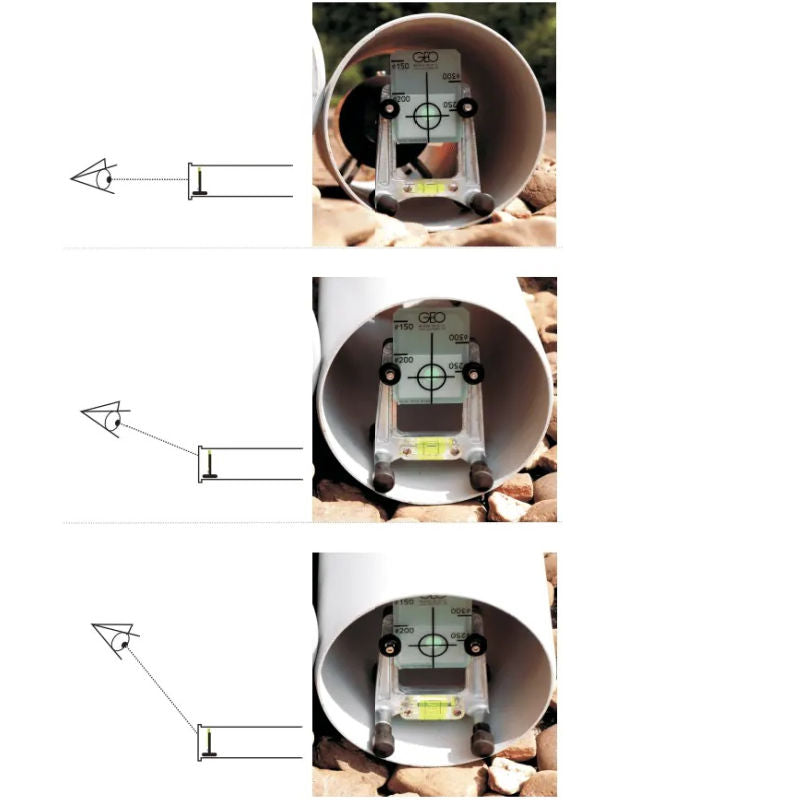

Electronic bubble level
For easy and intuitive alignment of the laser in the tube. -
Li-Ion battery
Operating time up to 34 hours on one charge. Rechargeable in a maximum of 5 hours without removing the battery. -
Proven mounting feet
Guarantee a secure, force-centered stand in the tube.
Specification
| Laser class | 3R, <5mW |
|---|---|
| Laser | Diode, visible green, 520 nm |
| Laser range | up to 500 m |
| Beam diameter at laser | 13 mm |
| Inclination range | -10% to +40% |
| Self-levelling range | - 5 % to + 40 % |
| Reading accuracy | 0,001 % |
| Permissible deviation | 5 mm/100 m |
| Direction setting | ± 5,000 % |
| Banking compensation | ± 4° |
| Operating time | up to 34 hours |
| External power supply | 11 to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5bar (30m underwater!) |
| Temperature range | - 10° C to + 50° C |
| Dimensions | Ø 130 mm, length 265 mm |
| Weight | 3 kg |
| Range IR remote control | to 150 m from front/to 18 m from behind |
Included
- GEO-Laser KL-901 Pipe Laser
- Hard Case
- Battery Charger
- Leg Sets DN 200, DN 250 & DN 300
- Universal Target Frame KL-04
- Plexi 150-300
