GEO-Laser RL-70L Automatic Rotating Laser Level

GEO-Laser RL-70L Automatic Rotating Laser Level

by GEO-Laser
$4,047.10

Notify me when back in stock

GEO-Laser RL-70L Automatic Rotating Laser Level for Horizontal Use

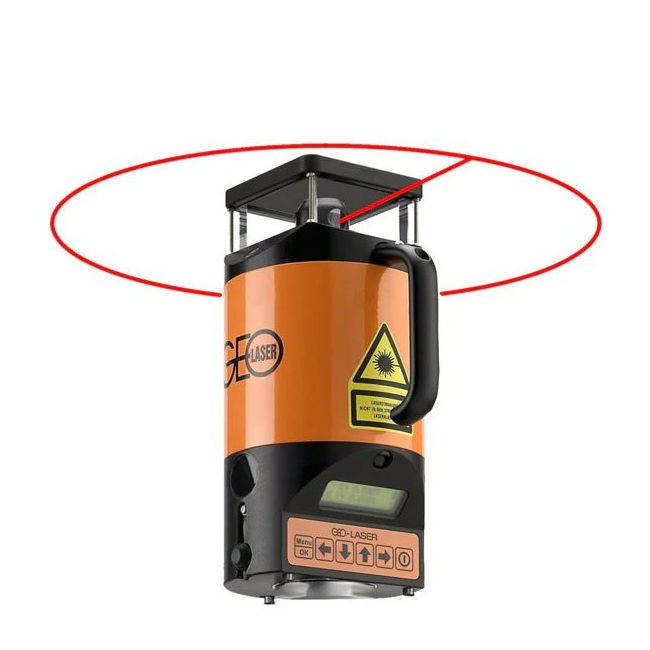

The automatic rotary laser, type RL-70L/-71L is an all-round laser for horizontal use capable of electronic self-levelling over two axes. It emits a laser beam, which turns into a light plane as it rotates.



FEATURES

  • Performance features
    Laser class 2, laser power < 1 mW. The easy standard laser class. No special safety precautions necessary.
  • Fully automatic
    Automatic levelling and cut-out in case of low battery or jerky movement.
  • Automatic function can be switched off
    Therefore inclination adjustment by points of reference is possible.
  • Optical sight
    For quick alignment of the inclination axis.
  • Illuminated, clearly legible LCD display
    Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu.
  • Increased safety
    Control indicators with blinking warning system for levelling, operating status and low battery.
  • Robust metal housing
    100 % watertight, Plastic-coated, swept and filled with nitrogen.
  • Special laser beam quality
    Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption.
  • Lithium ion rechargeable battery
    Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery
  • Uncompromisingly easy
    All you have to do is switch on/off. The rest is done by the RL-70L/-71L automatically.
  • Checking and adjustment
    Easily possible at the building site as well. The device does not have to be opened for adjustment.
  • Examples of use
    Industrialised building, sheet pile ramming, ceiling installation, screed work, height transfer, height control, excavation work, road/track levelling, shuttering, foundation work, concrete work, lifting of buildings, tank construction, body-making and for machine control of excavators, caterpillars, finishers, graders.


SPECIFICATIONS

Laser class 2, < 1 mW
Laser Diode visible red 635 nm
Laser range to 400 m
Beam diameter at laser at laser 13 mm
Self-levelling range ± 5 %
Permissible deviation ± 5 mm/100 m
Operating time up to 28 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range - 10° C to + 50° C
Weight 3,4 kg
Guarantee 24 month
Rotor speed adjustable in steps from 0 to 800 RPM
Adjustment possible in the field without having to open the device

Quality Guarantee

GEO-Laser's lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as the rigorous quality assurance process are guarantors of high functionality and a long service life. All devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.





At Gromatic, we understand the critical role reliable equipment plays in your projects. That's why we go beyond simply offering a wide selection of high-quality surveying tools. Here's how partnering with Gromatic optimizes your surveying operations:

  • Competitive Pricing: We offer a price match guarantee, ensuring you get the best possible value on your equipment purchase.

  • Reduced Costs: Enjoy free shipping Australia-wide

  • Streamlined Workflow: Our hassle-free 30-day return policy provides peace of mind, allowing you to focus on project success.

  • We're here to provide exceptional customer service, ensuring you choose the ideal tools for your specific needs.

Shipping is FREE on all orders to customers in Australia.

As soon as you place your order, you will receive an order confirmation e-mail.

If your order is in stock and we process the charges to your credit card, it will ship within 3 business days from the date of your order.

We will send you shipping confirmation within 24 hours of your order leaving the warehouse to the e-mail address you provided at the checkout.
