Leica Cable and Pipe Avoidance kit with DD130 Underground Service Locator and DA175 Signal Transmitter

Leica Cable and Pipe Avoidance kit with DD130 Underground Service Locator and DA175 Signal Transmitter

by Leica Geosystems
$4,689.99

Notify me when back in stock

The ultimate Utility Avoidance Kit from Leica!


Avoiding underground cables and pipes is a major concern on construction sites. Detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage and any subsequent costs.

The new Leica DD130 simplifies and streamlines the utility location and tracing process. For all professionals who need to accurately locate and trace buried utilities, the DD130 cable locator features additional tracing capabilities and increased depth detection in an easy, intuitive product. The DD130 delivers consistent and precise location capabilities for increased user confidence.

The DA175 Signal Transmitter sends a traceable signal onto underground utilities, enhancing the capabilities of your existing Leica DD locator.

Use the DD130 service locators in conjunction with a DA175 signal transmitter to achieve improved accuracy and application scope!

In the Box

  • DD130 Underground Service Locator with digital display

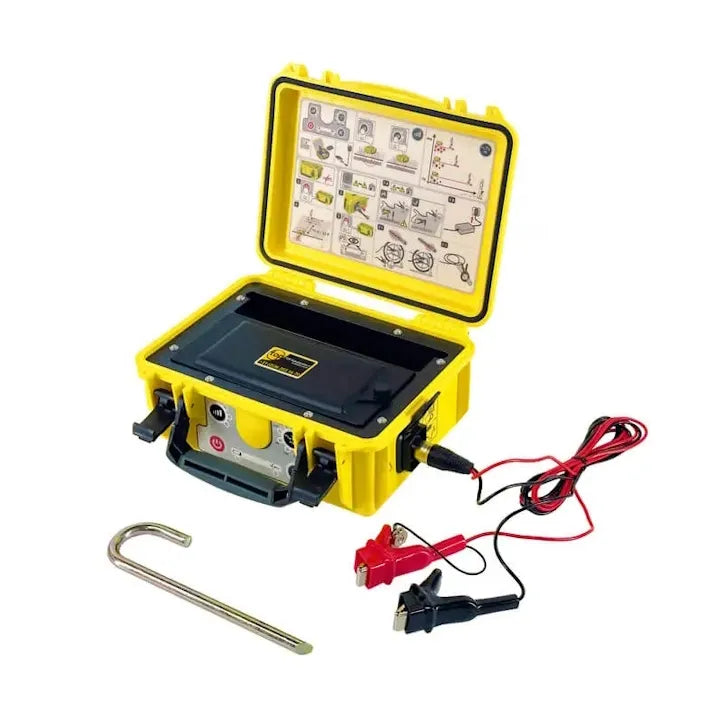

  • DA175 1 Watt  Signal Generator with Earth Spike, Crocodile clip connector & cables

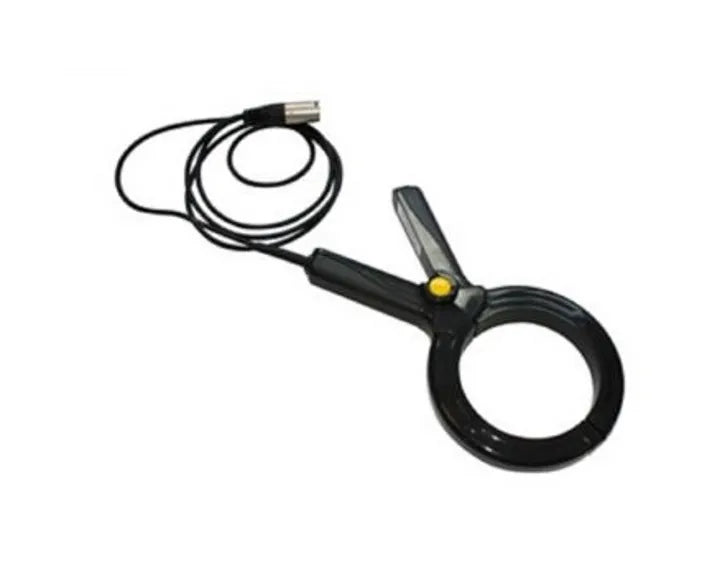

  • Transmitter 100mm (5" Signal Clamp)  2m
  • Locator System Carry Bag
  • Alkaline batteries
  • User manual



DD130

Operating frequencies

Mode

Frequency

Power

50 Hz or 60 Hz mains electrical and harmonics

Radio

15 kHz to 60 kHz

Auto

Power, Radio, 33 kHz

Transmitter

32.768 (33) kHz
8.192 (8) kHz
512 Hz (DD130 series models)
640 Hz (DD130 series models)

Depth estimation

Depth range

Line 0.3 m to 3 m



Sonde 0.1 to 9.99 m

Depth accuracy
(Undistorted signal)

10%

General technical data

Mode

Output

Display panel

Monochrome

Keypad

2 membrane push buttons

Audio

85 dBA @ 30 cm
Power, Radio and Auto mode:
Continuous tone (different pitch for each mode).
8 kHz and 33 kHz mode: All tones are different.
Pulsed tone (different pitch for each mode).
512 Hz and 640 Hz mode:
Pulsed tone (different pitch for each mode).
All tones are different.

Battery type

6 x LR6 (AA) alkaline

Typical operating time

15 hours constant use at 20 °C/68 °F

Dimensions

85 x 250 x 760 mm/3.4 x 10 x 30 inches

Weight (incl. batteries)

2.7 kg with batteries

Temperature

Operating -20 °C to +50 °C, -4 °F to +122 °F
Storage -40 °C to +70 °C, -40 °F to +158 °F

Protection against water, dust and sand

Conforms to IP54

Humidity

95% RH non condensing
The effects of condensation are to be effectively counteracted by periodically drying out the product.

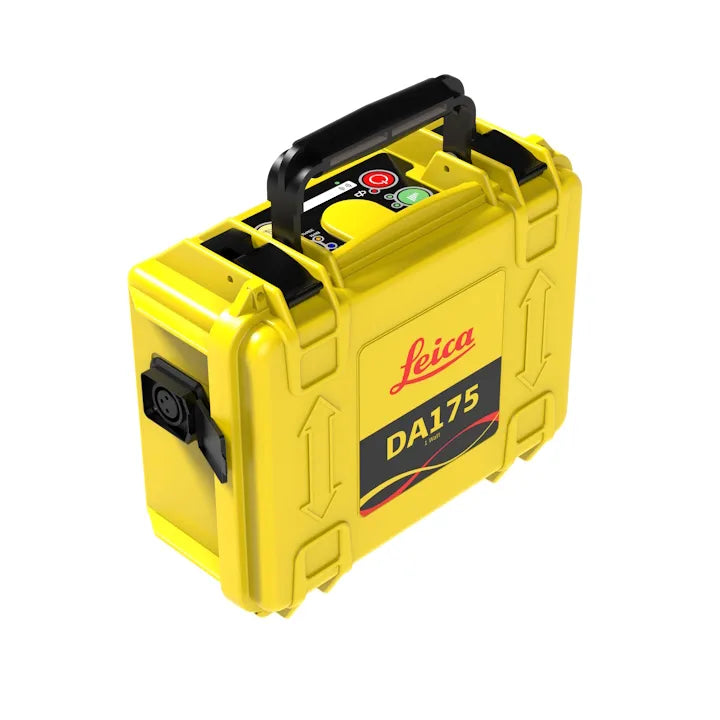

DA175 1 Watt Transmitter

Induction

Up to 1 Watt max.

Connection mode

Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms

Operating transmission frequencies

131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz (DA230 series models)
640 Hz DA230 series models)

Display panel

LED Indicators:
Battery low indicator
Connection mode
Frequency indicator
Power Output indicator

Keypad

4 membrane push buttons

Audio

85 dBA @ 30 cm
Induction mode:
Pulsed output with a differing rate for each frequency
Connection mode:
Low - No output: pulsed output, differing rate for each frequency
Good Connection output: constant tone, pitch dependent on power output

Battery type

7.4 V Li-Ion pack

Typical operating time 3 Watt, 1 Watt

15 hours at power level 2 connection mode

Dimensions

250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches

Weight (incl. standard accessories and batteries)

2.38 kg with Li-Ion

Temperature

Operating -20°C to +50°C, -4°F to +122°F
Storage -40°C to +70°C, -40°F to +158°F

Protection against water, dust and sand

Conforms to IP67 lid open or closed

Humidity

95% RH non condensing
The effects of condensation are to be effectively counteracted by periodically drying out the product.

Approvals

CE, FCC
