Leica DA175 1 Watt Signal Transmitter

Leica DA175 1 Watt Signal Transmitter

by Leica Geosystems
$1,755.00

Notify me when back in stock

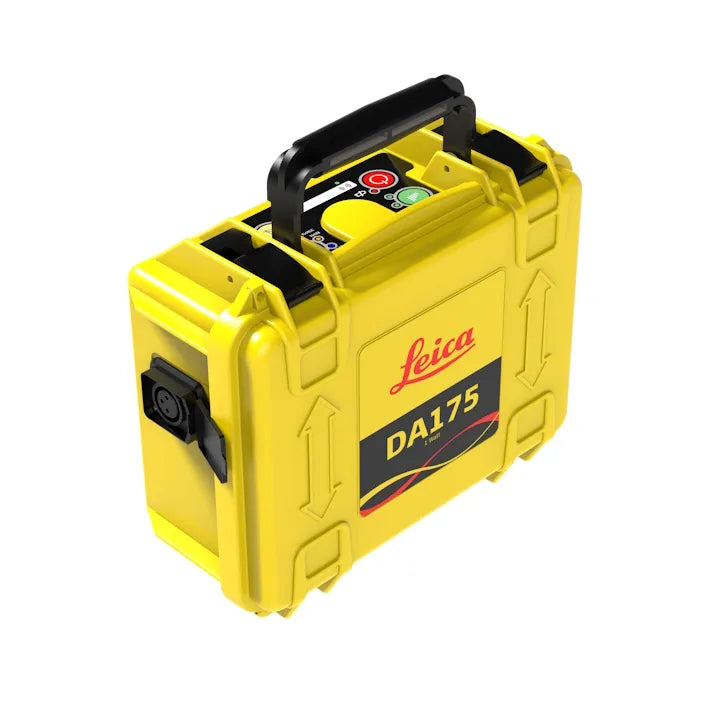

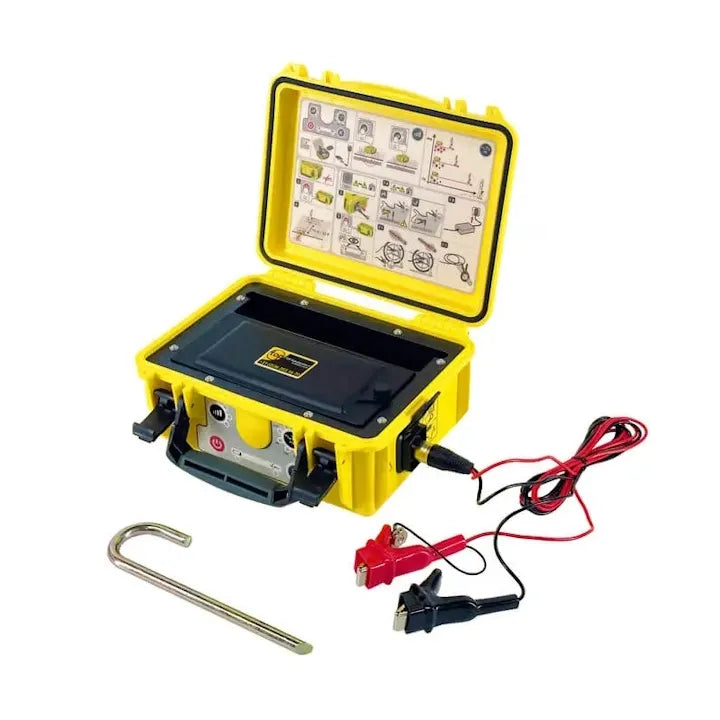

DA175 1 Watt Signal Generator with Earth Spike, Crocodile clip connector & cables!

The Leica DA175 transmitter is a 1-watt signal transmitter which is designed to work with the Leica DD series of utility locators, including DD120, DD130, and DD175.

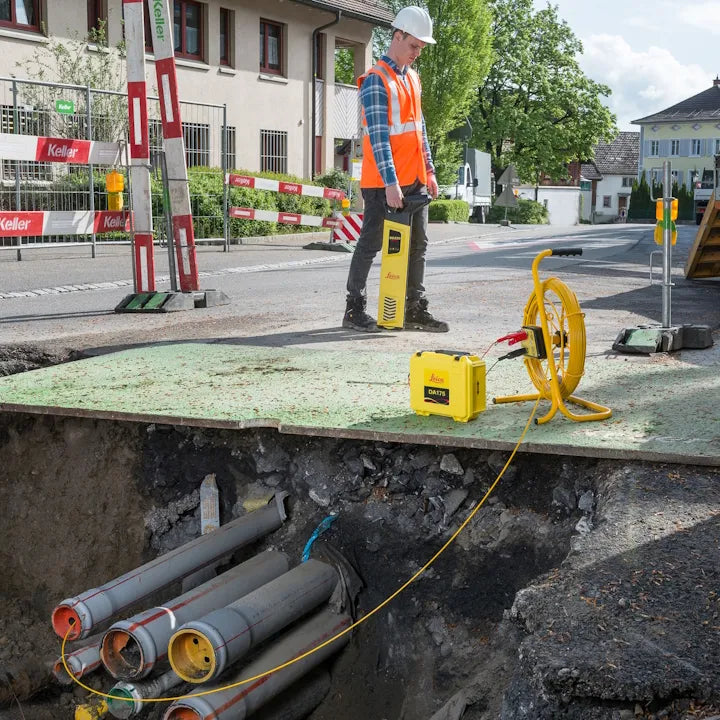

This device send a traceable signal onto underground utilities, enhancing the capabilities of your existing Leica DD locators.



Induction

Up to 1 Watt max.

Connection mode

Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms

Operating transmission frequencies

131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz (DA230 series models)
640 Hz DA230 series models)

Display panel

LED Indicators:
Battery low indicator
Connection mode
Frequency indicator
Power Output indicator

Keypad

4 membrane push buttons

Audio

85 dBA @ 30 cm
Induction mode:
Pulsed output with a differing rate for each frequency
Connection mode:
Low - No output: pulsed output, differing rate for each frequency
Good Connection output: constant tone, pitch dependent on power output

Battery type

7.4 V Li-Ion pack

Typical operating time 3 Watt, 1 Watt

15 hours at power level 2 connection mode

Dimensions

250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches

Weight (incl. standard accessories and batteries)

2.38 kg with Li-Ion

Temperature

Operating -20°C to +50°C, -4°F to +122°F
Storage -40°C to +70°C, -40°F to +158°F

Protection against water, dust and sand

Conforms to IP67 lid open or closed

Humidity

95% RH non condensing
The effects of condensation are to be effectively counteracted by periodically drying out the product.

Approvals

CE, FCC
