Description

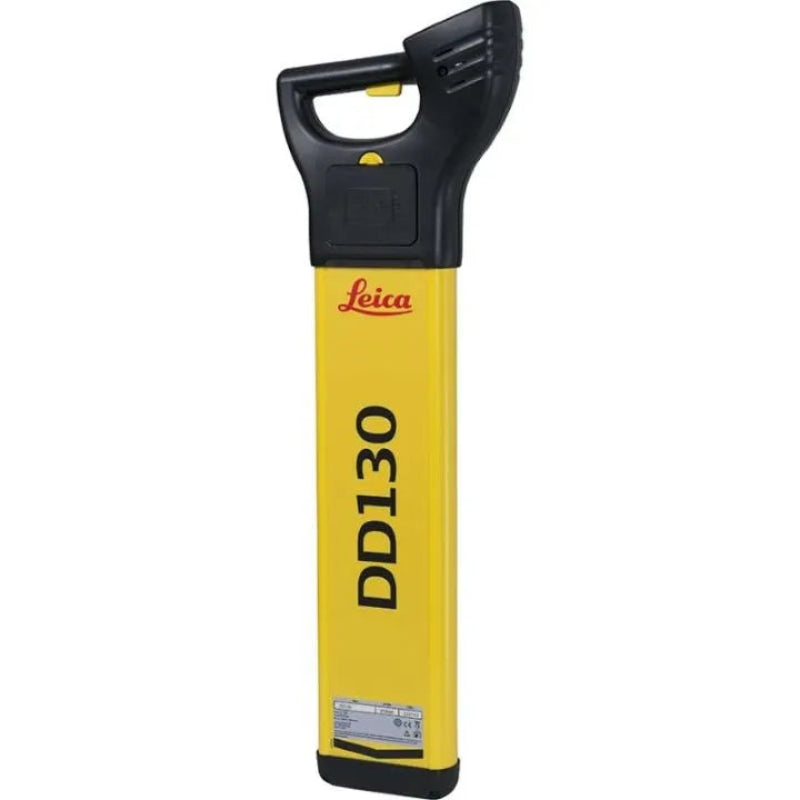

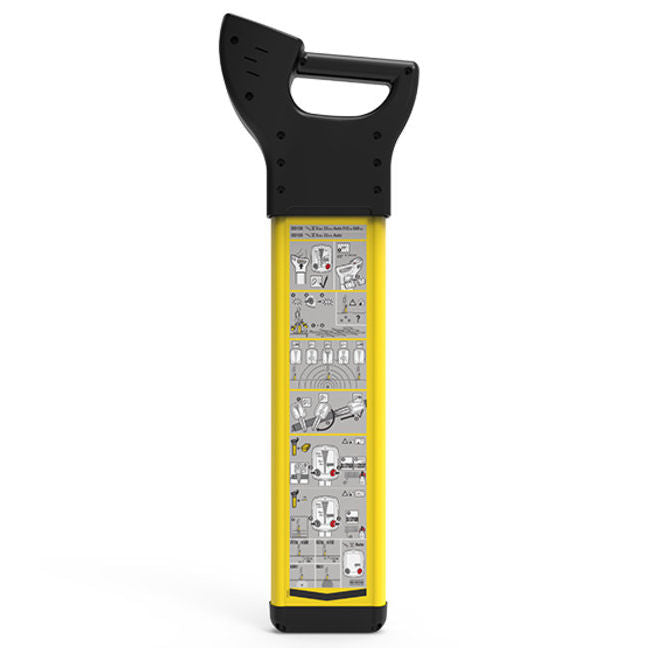

Leica DD130 Cable Avoidance Tool
Discover underground utilities with unprecedented confidence using the Leica DD130, a professional-grade multi-frequency locator designed to streamline detection workflows for surveyors and construction professionals.
Advanced Detection Technology
The DD130 represents Leica's next-generation approach to utility detection, featuring a digital display and enhanced sensitivity that transforms how professionals locate and trace buried infrastructure.
Superior Detection Capabilities
- Exceptional depth detection up to 10 meters (33 feet)
- Multi-frequency operation for comprehensive utility identification
- Advanced signal current measurement for improved accuracy
- Extended trace range with specialized 512Hz and 640Hz frequencies
- Consistent performance across varying field conditions
Intelligent Operating Modes
- Power mode for energized electrical cables
- Radio mode for passive signal detection
- Auto mode for simultaneous multi-signal scanning
- Transmitter modes: 33kHz and 8kHz for active tracing
Engineered for Professional Efficiency
Automatic Pinpointing System
The DD130's revolutionary Automatic Pinpointing technology eliminates the need for manual sensitivity adjustments, allowing operators to:
- Achieve optimal detection settings automatically
- Minimize human error in complex environments
- Maintain consistent detection quality
- Focus on utility mapping rather than equipment configuration
Enhanced Safety Integration
- Good-to-Go Health Check for pre-operation verification
- Automatic startup testing sequence
- Clear digital display of detection information
- IP54-rated protection against dust and water ingress
Comprehensive Detection System
For maximum effectiveness, the DD130 works seamlessly with Leica's signal transmitters:
- Compatible with DA220 and DA230 transmitters
- Expandable with specialized accessories
- Creates a complete underground utility mapping solution
- Enhances detection capabilities in challenging environments
Professional Applications
Perfect for:
- Pre-excavation utility verification
- Infrastructure mapping and documentation
- Cable and pipe tracing in complex utility networks
- Preventative damage assessment
- Construction site preparation and planning
The Leica DD130 delivers the precision and reliability that surveyors and construction professionals demand, helping prevent utility strikes, project delays, and the associated costs of underground infrastructure damage.
Specifications
|
MODEL |
DD130 |
|
POWER |
50Hz model or 60Hz model |
|
RADIO |
15kHz to 60kHz |
|
AUTO |
Power, Radio, 33kHz |
|
TRANSMITTER MODES |
32.768 (33) kHz |
|
DEPTH RANGE |
Line 0.3m to 3m / 1ft to 10ft |
|
DEPTH ACCURACY* |
10% |
|
ENVIRONMENTAL STANDARD |
IP54 |
|
OPERATING TEMPERATURE |
-20° C to +50° C |
|
BATTERY |
6 x LR6 (AA) Alkaline |
|
BATTERY OPERATING TIME** |
15 h |
|
DIMENSIONS (HXWXD) |
760 x 250 y 85mm |
|
WEIGHT WITH BATTERIES |
2.7Kg |
