Description

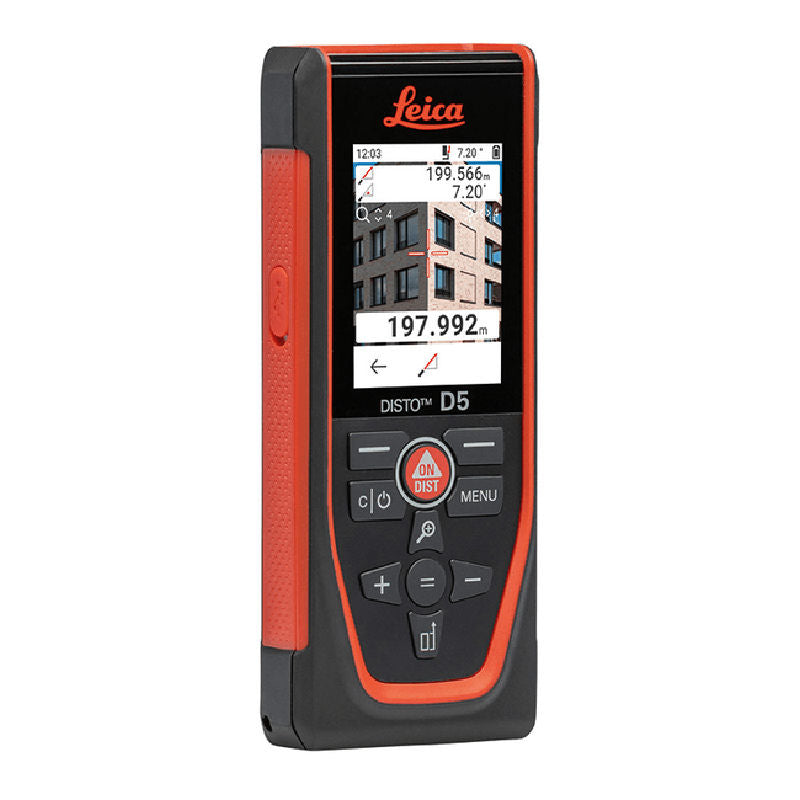

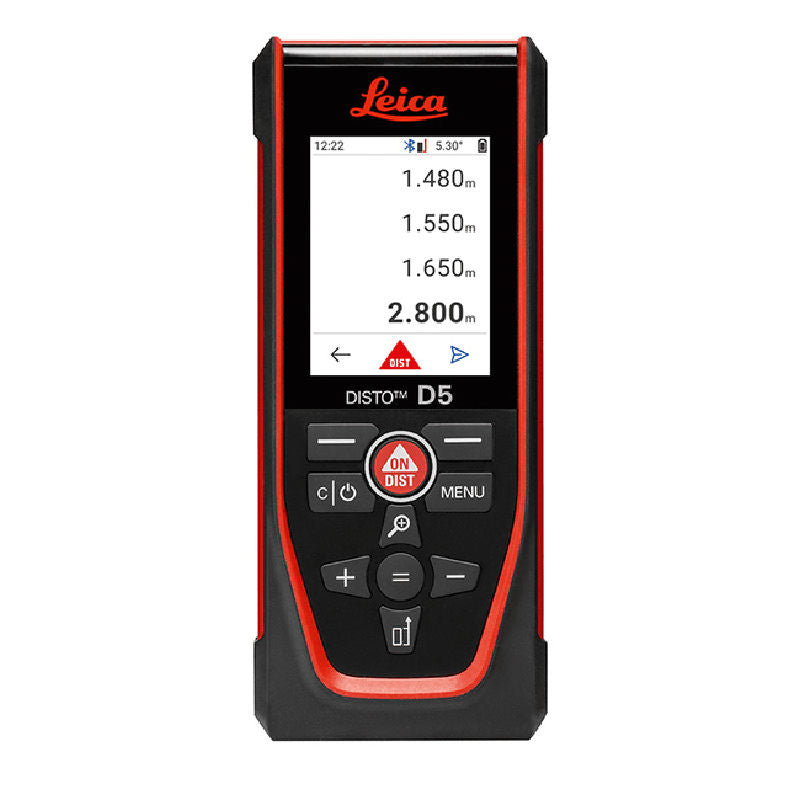

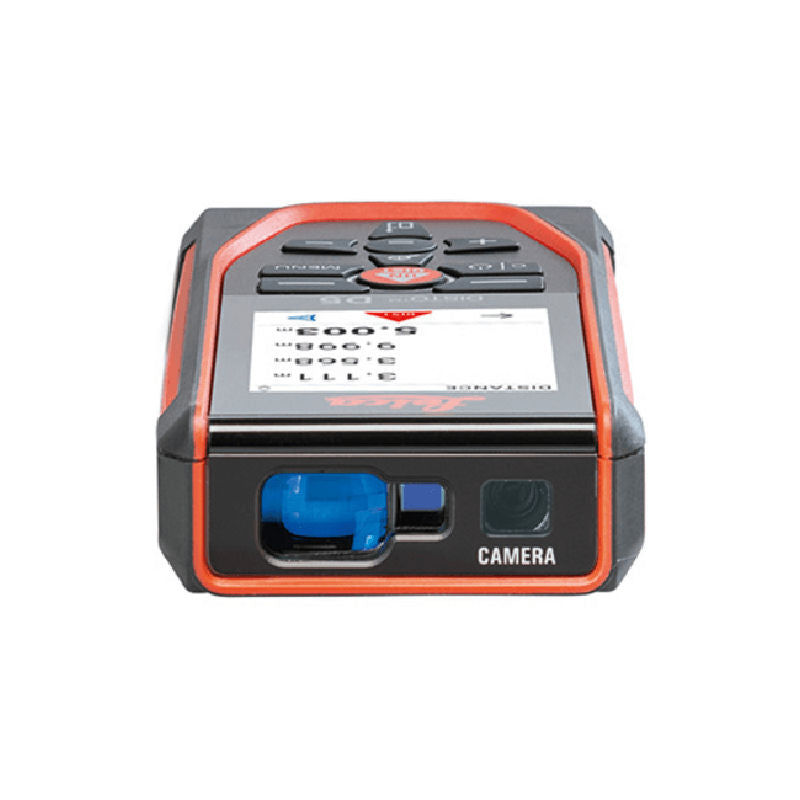

Leica DISTO D5 Laser Distance Measurer
Master outdoor measurements with the Leica DISTO D5, a professional-grade laser distance meter that combines advanced digital pointfinder technology with precise measurement capabilities for challenging environments.
Advanced Digital Technology
Superior Visibility
- 2.4" IPS display with scratch-resistant lens
- Digital Pointfinder with 4x zoom capability
- Crystal-clear target visualization
- Gesture-triggered measurements for enhanced accuracy
- Exceptional visibility even in bright sunlight
Professional Measurement Capabilities
- Extended range up to 200m in favorable conditions
- Industry-leading accuracy of ±1.0mm
- High-precision resolution of 0.1mm
- Complete 360° tilt measurement range
- Tilt accuracy of ±0.2°
Intelligent Measurement Features
Smart Operations
- Advanced Smart Horizontal Mode
- Height tracking functionality
- Comprehensive profile measurements
- Precise angle calculations
- Quick startup for immediate operation

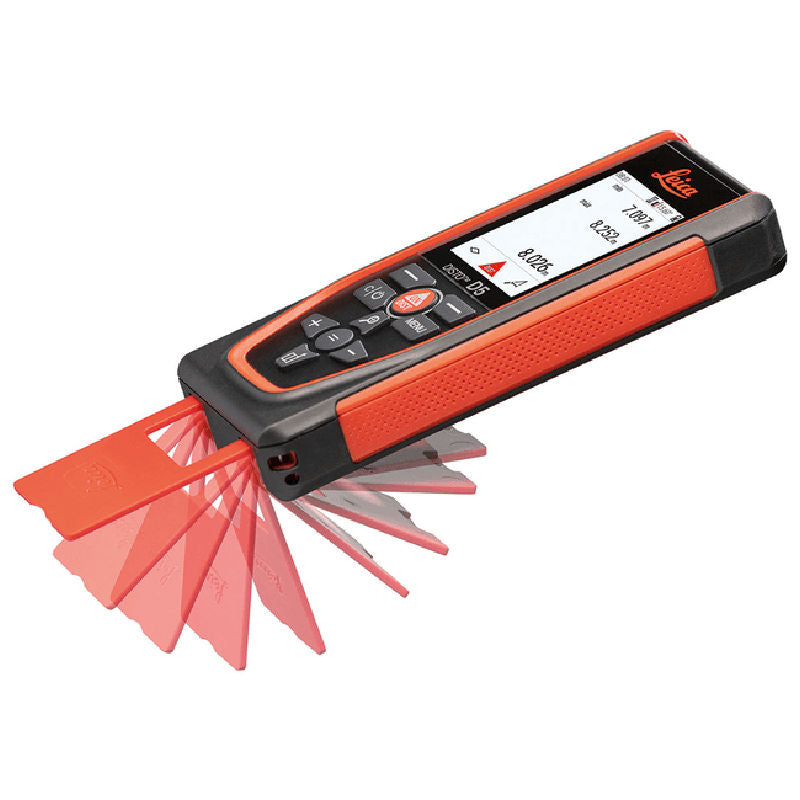

- Automatic end-piece detection
Digital Integration
- Seamless DISTO Plan app compatibility
- Bluetooth® v5.0 connectivity (range up to 10m)
- Custom template export capabilities
- Excel integration support
- Error-free digital workflow support
Professional Performance
Durability and Protection
- IP54-rated protection against dust and water splashes
- Robust construction for jobsite conditions
- Intelligent power management system
- Automated safety features
- Compact, ergonomic design
Extended Operation
- Up to 5,000 measurements per charge
- 10-hour continuous operation time
- Li-Ion 2000 mAh battery
- Automatic laser shutdown after 90 seconds
- Power-saving auto-shutdown after 180 seconds
Technical Specifications
Measurement Parameters
- Operating Range: 0.05 - 200m (favorable conditions)
- Alternative Range: 0.05 - 120m (unfavorable conditions)
- Laser Class: 2 (635 nm, <1 mW)
- Laser Point Diameter: 6/30/60mm at 10/50/100m
Physical Characteristics
- Dimensions: 144 x 60 x 24mm
- Weight: 180g (including batteries)
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Storage Temperature: -25 to 70°C (-13 to 158°F)
Professional Technology
The DISTO D5 features X-Range Power Technology, ensuring reliable measurements in challenging conditions while maintaining exceptional accuracy and efficiency throughout extended operation periods.
Included
- Leica DISTO D5 laser distance meter
- Hand loop
- Pouch
- USB cable
- Safety instructions
- Calibration Certificate Silver
- Quick Start with QR code linking to online manual
Specifications
| Accuracy with favourable conditions | 1.0 mm / 1/16" |
| Accuracy with unfavourable conditions | 2.0 mm / 1/8" |
| Range with favourable conditions | 0.05 – 200 m / 0.07 – 660 ft |
| Range with unfavourable conditions | 0.05 – 120 m / 0.07 – 400 ft |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| X-Range Power Technology | yes |
| Laser Class 2 | 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | yes |
| Tilt measuring range | 360° |
| Tilt measuring tolerance | ± 0.2° |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Protection class | IP54 (dust- and splash water protected) |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Range of Bluetooth® | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements |
| up to 10 hours operation time | |
| Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
| Weight (with batteries) | 180 g / 6.35 oz |
| Temperature range storage | operation | -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F |
