Description
Leica Disto D5 Laser Distance Measurer Kit with Tripod and Adapter
Professional Outdoor Distance Measurement Solution for Surveyors and Construction Specialists
The Leica DISTO D5 transforms outdoor distance measurement with unparalleled precision and versatility in challenging environments. Designed specifically for surveying professionals and construction contractors who demand accuracy in bright conditions, this premium laser measurer delivers reliable performance when you need it most.
Superior Outdoor Visibility & Precision

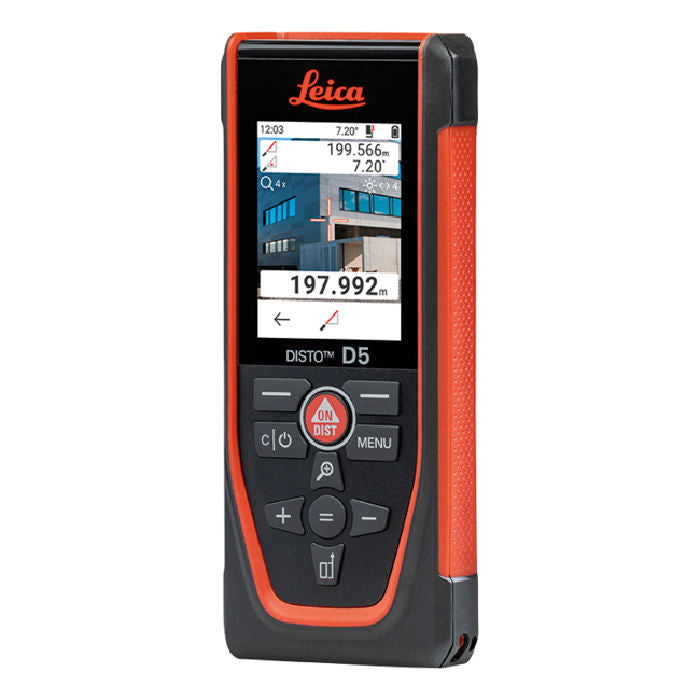

Unlike standard laser measurers that struggle in sunlight, the DISTO D5 features an advanced digital Pointfinder that ensures perfect aim even in the brightest outdoor conditions. The large IPS display with scratch-resistant lens provides crystal-clear visibility of both targets and results from any angle, eliminating guesswork on construction sites.
Gesture-Triggered Measurement for Maximum Accuracy
When measuring extreme distances up to 200 meters, even slight movements can compromise accuracy. The DISTO D5's innovative gesture-control technology allows hands-free measurement triggering, maintaining ±1.0mm accuracy with 0.1mm resolution—essential for professional surveyors who can't afford measurement errors.
Complete Professional Kit for Immediate Deployment
This comprehensive kit includes:

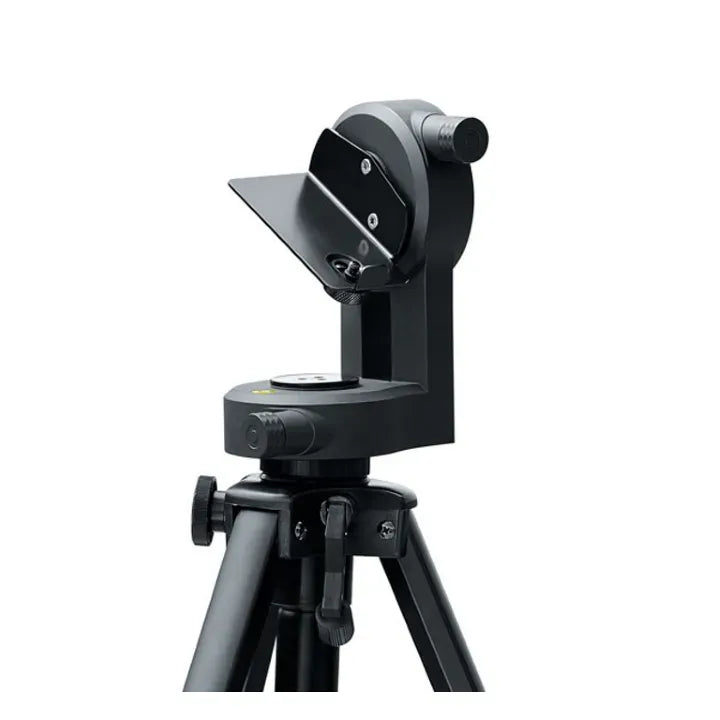

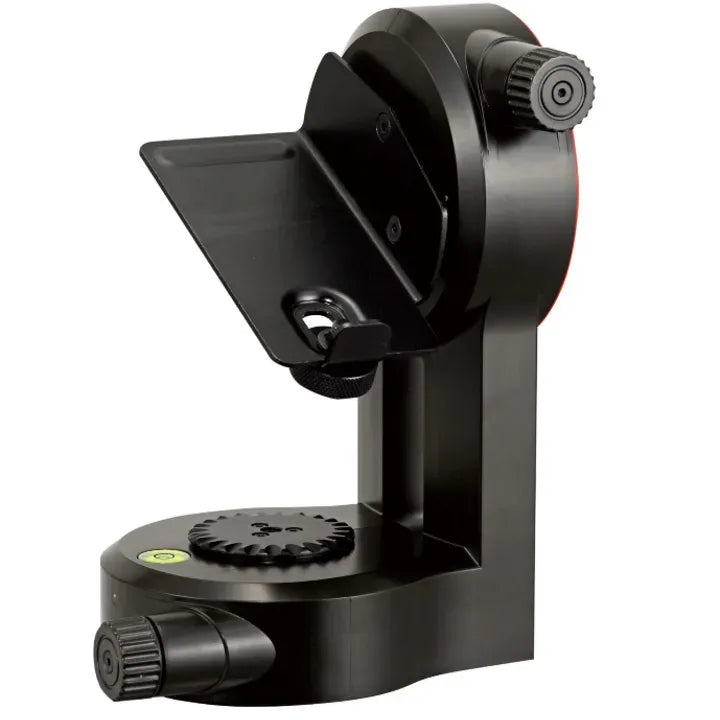

- Leica FTA360 high-precision tripod adapter with fine vertical and horizontal adjustment knobs for perfect targeting

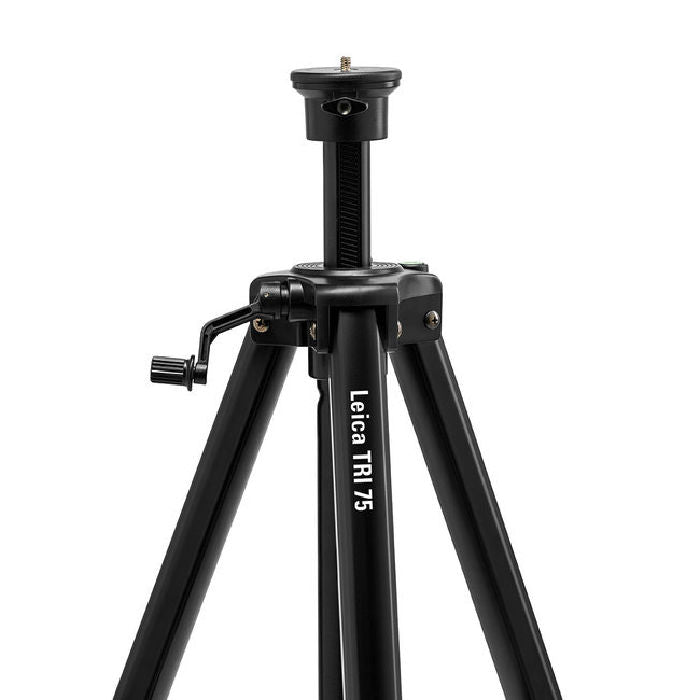

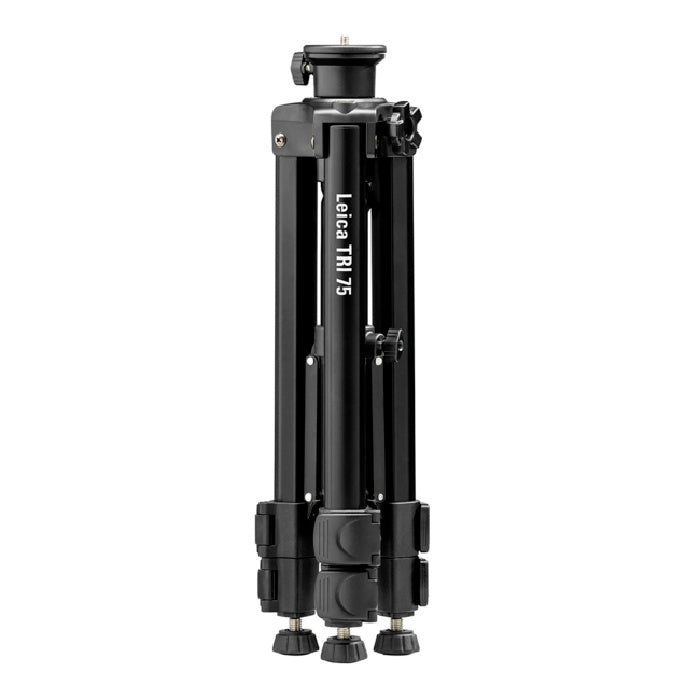

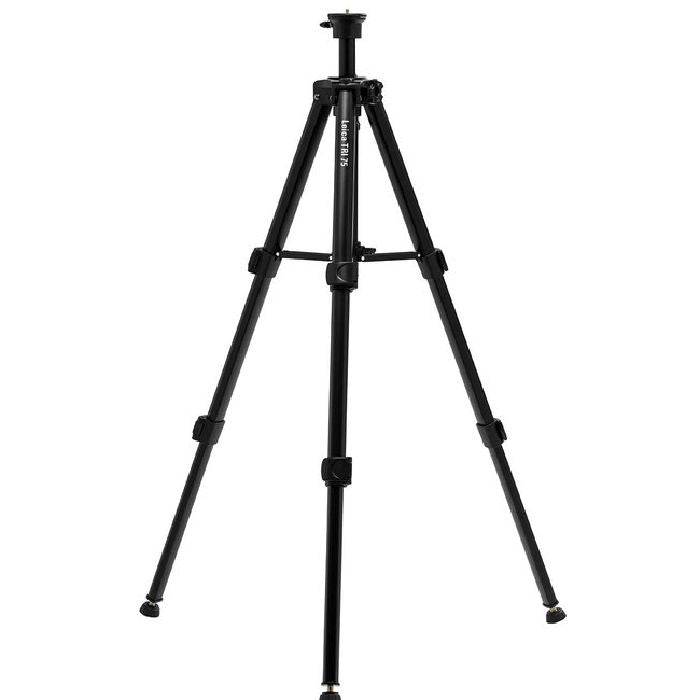

- Leica TRI 75 professional tripod with built-in bubble level and ¼" fixing screw (extendable from 0.42m to 1.15m)
- USB-C charging cable and carrying case
Advanced Measurement Functions for Complex Projects
Master challenging job site requirements with specialized measurement modes:
- Smart Horizontal Mode for accurate horizontal distance calculation over obstacles
- Height tracking for efficient elevation measurements
- Profile and angle measurements for complex structural assessments
- Built-in memory stores 50 measurements for on-site reference
Seamless Digital Workflow Integration
Eliminate data transfer errors with Bluetooth® 5.0 technology that connects directly to the DISTO Plan App (iOS/Android) or DISTO transfer (Windows). Export measurements to custom templates in Excel or other platforms, ensuring consistent documentation throughout your project lifecycle.
Built for Construction Durability

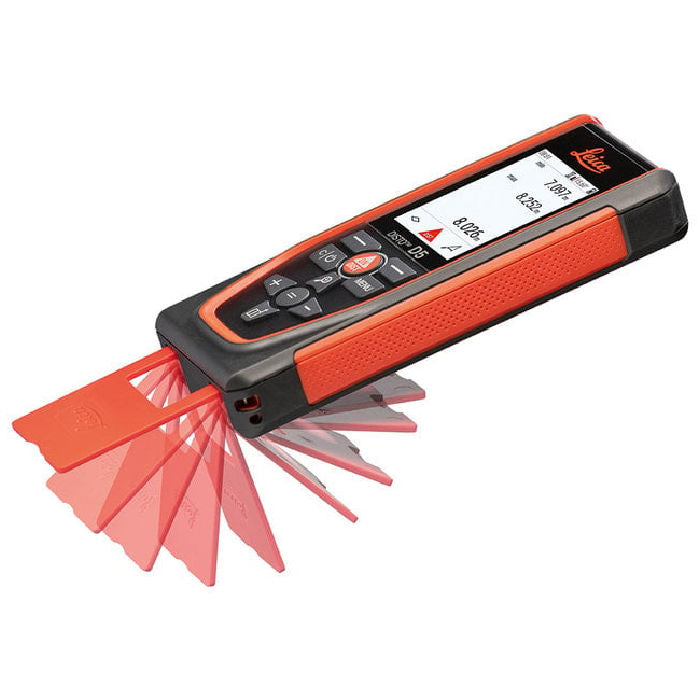

The rechargeable Li-Ion battery provides all-day operation, while the automatic-detection foldable end-piece ensures measurement consistency on varying surfaces. Fast start-up time keeps you productive without delays between tasks.
Perfect for civil engineers, professional surveyors, and construction contractors who require laboratory-grade precision in real-world conditions.

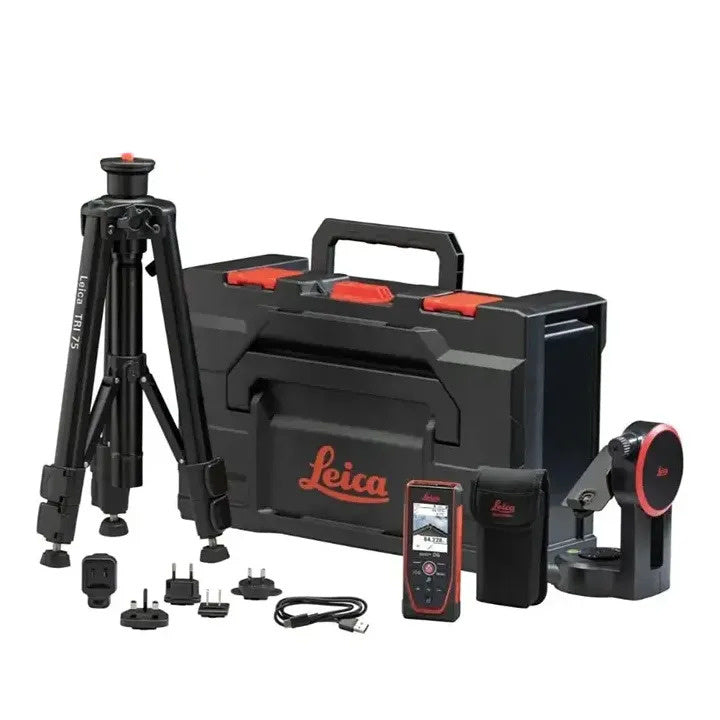

Included
- Leica Disto D5 Laser Distance Meter
- FTA 360 adapter
- TRI 75 Tripod
- Handloop
- Soft carry pouch
- Charger with USB cable
- Manual Calibration certificate
- Warranty card
- Leica Metabox 165L
Specifications
| Accuracy with favourable conditions * | 1.0 mm / 1/16" *** |
| Accuracy with unfavourable conditions ** | 2.0 mm / 1/8" *** |
| Range with favourable conditions * | 0.05 – 200 m / 0.07 – 660 ft *** |
| Range with unfavourable conditions ** | 0.05 – 120 m / 0.07 – 400 ft *** |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| X-Range Power Technology | yes |
| Laser Class 2 | 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | yes |
| Tilt measuring range **** | 360° |
| Tilt measuring tolerance | ± 0.2° |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Protection class | IP54 (dust- and splash water protected) |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Range of Bluetooth® | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements up to 10 hours operation time |
| Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
| Weight (with batteries) | 180 g / 6.35 oz |
| Temperature range storage | operation | -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F |
