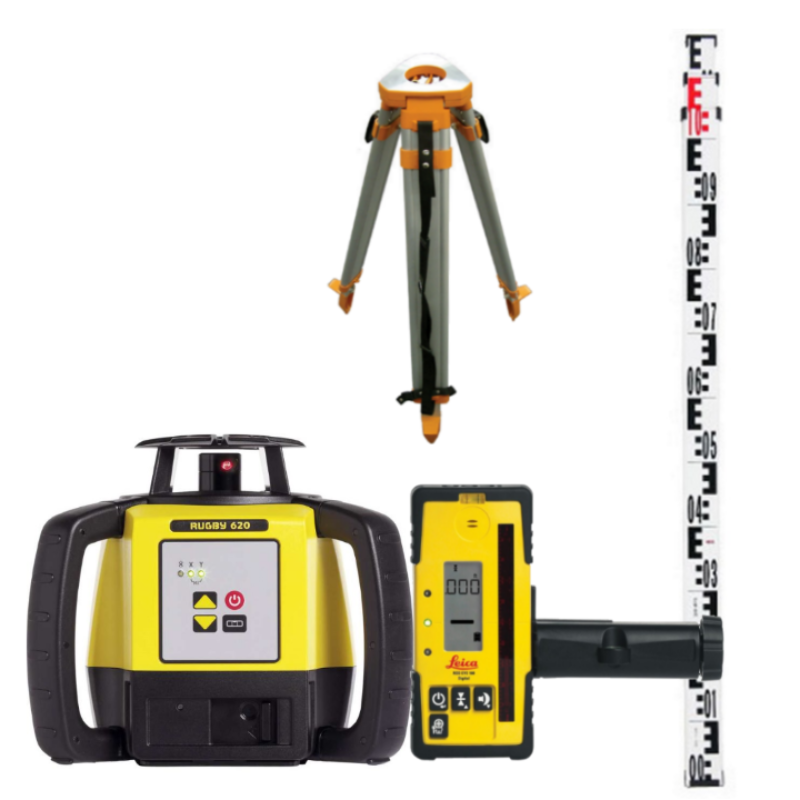

Leica Rugby 620 Rotating Laser Level Kit with Rod-Eye 160 Laser Receiver, Levelling Staff and Tripod

Leica Rugby 620 Rotating Laser Level Kit with Leica Rod-Eye 160 Laser Receiver, Levelling Staff and Tripod

by Leica Geosystems
$1,936.00

Notify me when back in stock

LEICA RUGBY 620 - TOUGH AS THE JOBSITE


Increase your productivity in levelling applications with the Leica Rugby 620 construction laser. Designed for general contractors who mainly perform formwork and concrete applications, the Rugby 620 rotating laser level offers a professional but simple levelling solution with an outstanding price-to-quality-ratio. Forget about costly errors, rework or downtime thanks to the fully-automatic operation with the Leica Rod Eye receivers. Concrete pouring, formwork levelling, setting foundations and footings has never been more efficient.

Simple and quick slopes!

The professional Rugby 620 laser level offers contractors application flexibility, allowing them to perform single slope applications using the manual grade control. Rugby 620 is a perfect laser tool for those contractors who occasionally need to do simple slope tasks like driveways, landscaping and parking areas. Depending on the type of the job, Rugby 620 offers operating range of 500 m with the Rod Eye Basic, and 600 m with the Rod Eye 140 and 160 digital receivers.



Specifications - Leica Rugby 620 Rotating Laser Level

Functionality

Self-levelling horizontal and manual slope in one axis

Range (diameter)

1,100 m

Self-levelling accuracy (defined at 25°C)

± 2.2 mm @ 30 m

Self-levelling range

± 5°

H.I. elevation alert

YES

Rotation speeds

10 rps

Laser diode type / class

635 nm / Class 1

Dimensions (HxWxD)

212 x 239 x 192 mm

Weight with batteries

2.6 kg

Protection class (splash water / dust proof)

IP67

Operating temperature range

-20° to +50°C



Specifications - Leica Rod-Eye 160 Laser Receiver

Working diameter (laser dependent):

1350 m

Detection height:

120 mm

Numeric readout height:

90 mm

Detectable spectrum:

600 nm to 800 nm

Very fine:

± 0.5 mm

Fine:

± 1.0 mm

Medium:

± 2.0 mm

Coarse:

± 3.0 mm

Very coarse:

± 5.0 mm

Audio volumes:

105 dBA / 95 dBA / 65dBA / Off

Automatic shut off:

10 minutes

Digital readout:

Units: mm, cm, in, in (fractions), ft

Arrow display:

15 channels

Anti-strobe protection:

Yes

Memory, last beam strike:

Yes

Beam finding (double beep):

Yes

Laser low battery indicator:

Yes

Warranty:

Three years

Environmental:

IP67

Batteries:

50+ hours (2 x 1.5 V "AA" )

Dimensions:

173 x 76 x 29 mm

Operating temperature:

-20°C to +50°C

Storage temperature (except batteries):

-40°C to +70°C

Includes

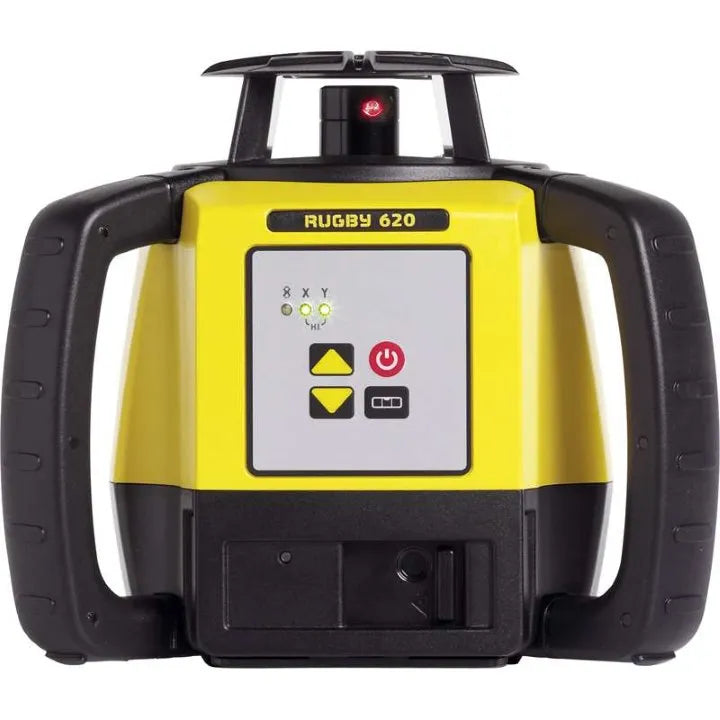

  • Leica Rugby 620 Rotating Laser Level

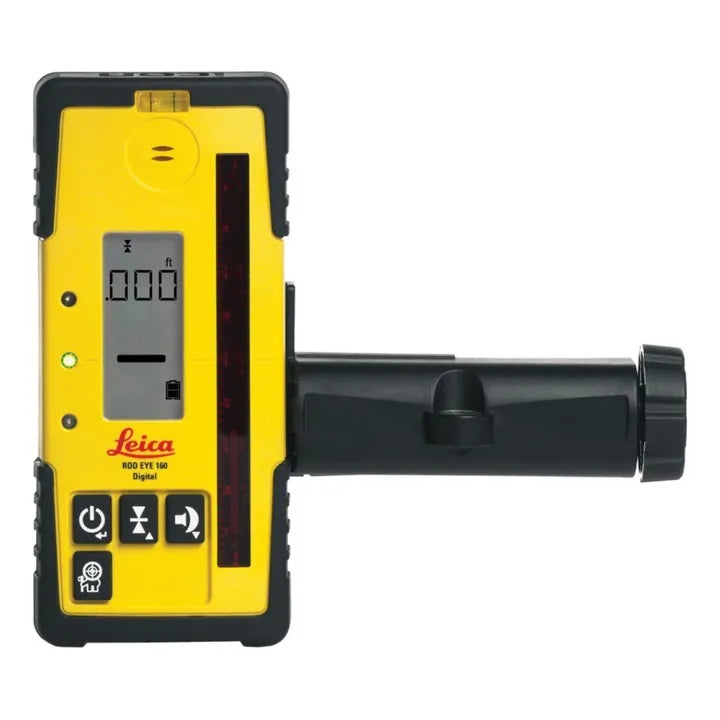

  • Leica Rod-Eye 160 Digital Laser Receiver with bracket

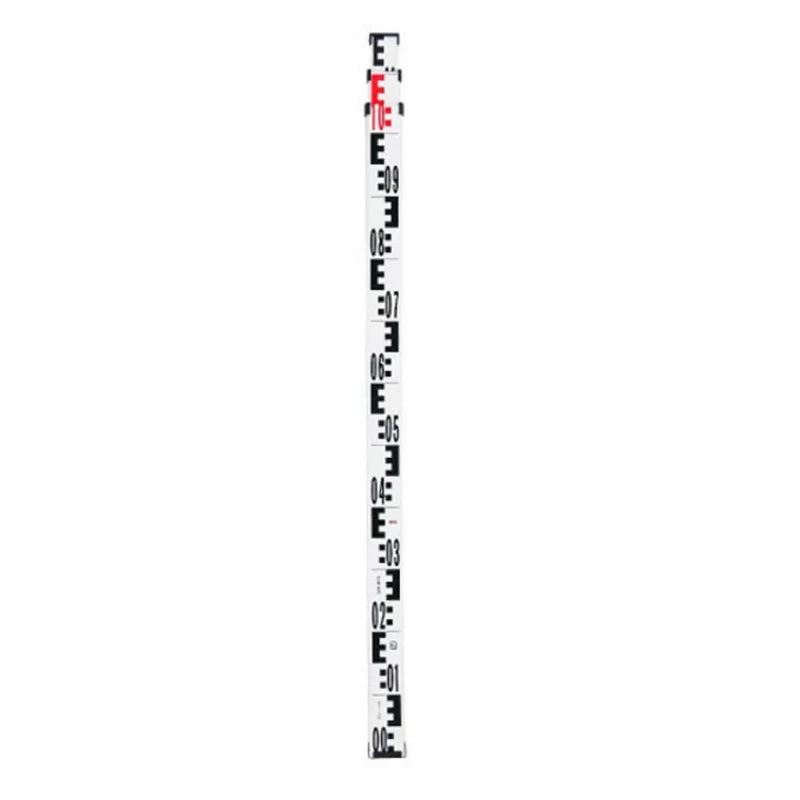

  • 3 m Levelling Staff

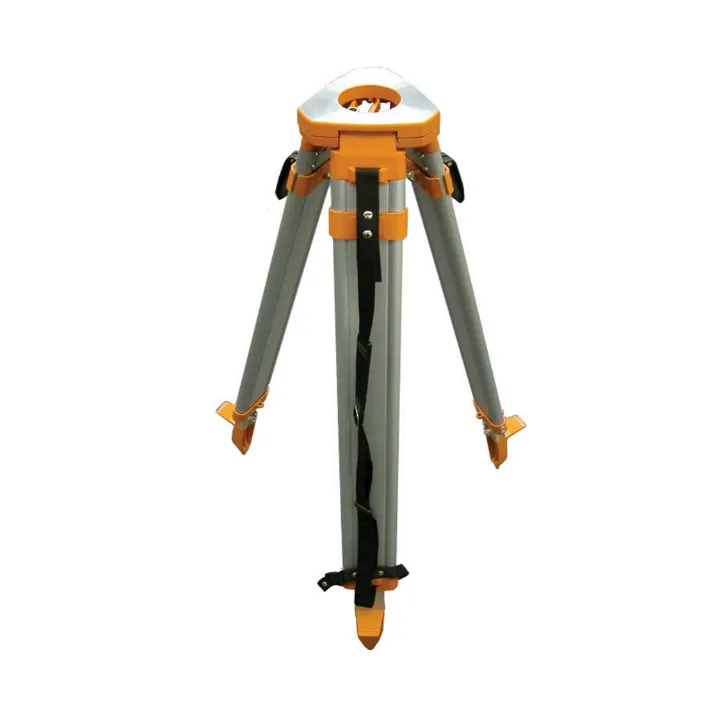

  • Flat Head Dual Lock Aluminium Tripod - max height 1.66 m
  • Carry Case
  • Alkaline Batteries
  • Instructions



 
