Leica Rugby 640 Rotary Laser Level Kit with Rechargeable Batteries and Laser Receiver
$2,420.00
- Description
- Specifications
- Why Buy From Us?
- Shipping
Description

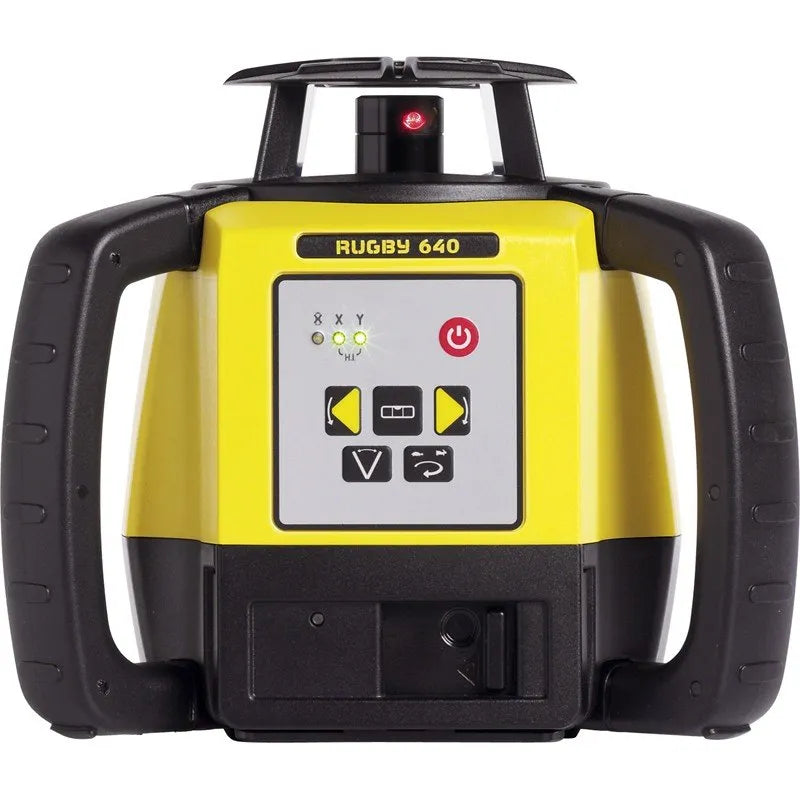

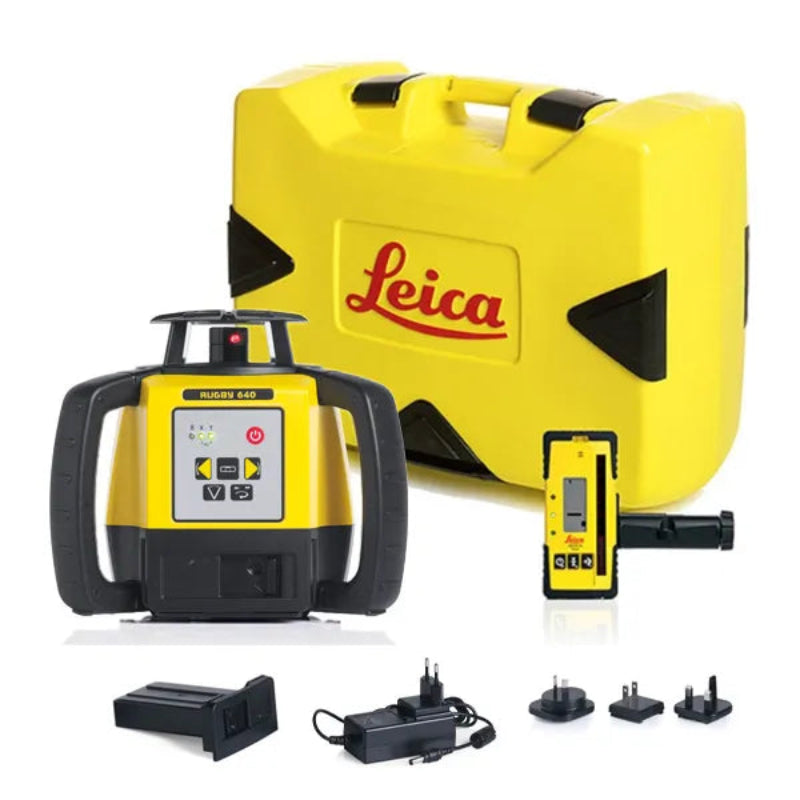

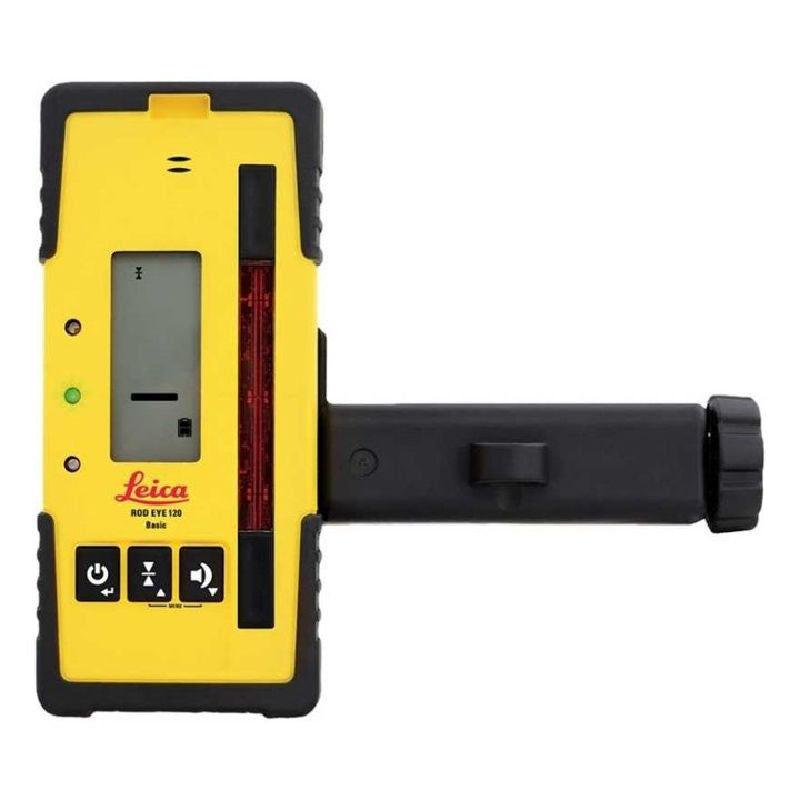

Leica Rugby 640 Rotary Laser Level Kit with Rechargeable Batteries and Rod-Eye 120 Laser Receiver
Master precision leveling with the Leica Rugby 640, a professional-grade dual-axis rotary laser level system that delivers exceptional accuracy for both indoor and outdoor construction applications.
Professional-Grade Performance
Experience unmatched versatility with this comprehensive self-leveling system, featuring both horizontal and vertical leveling capabilities with manual dual-axis slope control. The Rugby 640 delivers precise measurements across an impressive 2,000-foot range when paired with the included Rod-Eye laser receiver.
Superior Accuracy and Control
- Industry-leading accuracy of ±1/16 inch at 100 feet
- Self-leveling capability within ±5 degrees
- Versatile rotation speeds: 0, 120, 300, and 600 RPM
- Multiple scanning angles: 10°, 45°, and 90°
- Integrated plumb down beam for precise alignment
Engineered for Durability
Professional Protection
- IP67-rated construction for complete dust and water resistance
- Reinforced glass cage design
- Impact-resistant housing
- Ergonomic rubber handles for secure grip
- Built-in bump sensor with H.I. alert
Reliable Power Performance
- Extended operation up to 60 hours with alkaline batteries
- 40-hour runtime with rechargeable Li-ion batteries
- Includes charging system
- Automatic shut-off feature for battery conservation
Versatile Professional Applications
Interior Applications
- Ceiling grid installation
- Cabinet and lighting fixture alignment
- Interior wall layout and construction
- Floor leveling and tile installation
- Point transfer from floor to ceiling
Exterior Applications
- Concrete formwork and foundations
- Deck and patio construction
- Swimming pool installation
- Sub-grade elevation checking
- Cut and fill estimation
Technical Specifications
Performance Parameters
- Working Range: Up to 2,900 ft diameter
- Laser Classification: Class 2 (635nm wavelength)
- Detection Window: 2.75" (70mm)
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Weight: 5.6 lbs (2.56 kg)
- Dimensions: 8⅜" × 9⅜" × 7⅝" (212 × 239 × 192 mm)
Detection Accuracy Modes
- Fine: ±1.0mm
- Medium: ±2.0mm
- Coarse: ±3.0mm
Professional Features
Smart Operation
- One-touch commands for efficient operation
- LED display for clear status indication
- 5/8-11 tripod thread mounting
- Remote control capability up to 650 feet (remote sold separately)
- Dual handles for secure positioning
Advanced Functionality
- Automatic plumb point reference
- Building square checking capability
- Integrated scanning modes
- Automatic self-leveling system
- Manual dual slope functionality
Specifications
| Laser | |
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 2 |
| Direction | Horizontal/Vertical |
| Visibility | Visible |
| Range | |
| Working Diameter | up to 2,900 ft |
| Detection Window | 2.75" (70 mm) |
| Self Leveling | ±5 degrees (horizontal/vertical) |
| Remote | 650 feet (sold seperately) |
| Detection Accuracies | |
| Fine | ±1.0 mm |
| Medium | ±2.0 mm |
| Coarse | ±3.0 mm |
| Battery/Power | |
| Battery Life with Alkaline Batteries | 60 hours |
| Features | |
| Automatic Shut-Off | Yes |
| Display | LED |
| Drop Damage Protection | Yes |
| Bump Sensor (H.I./Out of Position Alert) | Yes |
| Protection Class | IP67 (dust proof and water-submersible) |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Dual Handles | Yes |
| Adjustable Rotating Speed | 0, 2, 5, 10 rps |
| One-Touch Commands | Yes |
| Plumb Point | Yes |
| General | |
| Weight | 5.6 lbs. (2.56 kg.) |
| Dimensions | 8 3/8 × 9 3/8 × 7 9/16" (212 × 239 × 192 mm) |
| Accuracy | |
| Horizontal | 1/16" at 100 ft (±1.5 mm at 30 m) |
| Vertical | 1/16" at 100 ft (±1.5 mm at 30 m) |
| Temperature | |
| Storage | –4 to +158 °F (–20 to +70 °C) |
| Operating | 14 to +122 °F (–10 to +50 °C) |
| Functions | |
| Automatic Leveling | Yes |
| Scanning Modes | 10, 45, 90 |
| Applications | |
| Checking/Setting Elevations | Yes |
| Transferring Points from Floor to Ceiling | Yes |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Installation/Leveling Ceiling Grids | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Plumb Reference | Yes |
| Checking Elevations of Sub-Base and Sub-Grade | Yes |
| Short-Run Vertical Alignment | Yes |
| Checking Building Square & Area | Yes |
| Locating Finished Floor Levels | Yes |
| Estimating Cut & Fill | Yes |
| Grade | |
| Type | Manual, dual slope |
