Leica Rugby 640G Green Beam Rotating Laser Level Kit with Rod-Eye 120G Laser Receiver, Levelling Staff and Tripod
$2,596.00
- Description
- Why Buy From Us?
- Shipping
Description

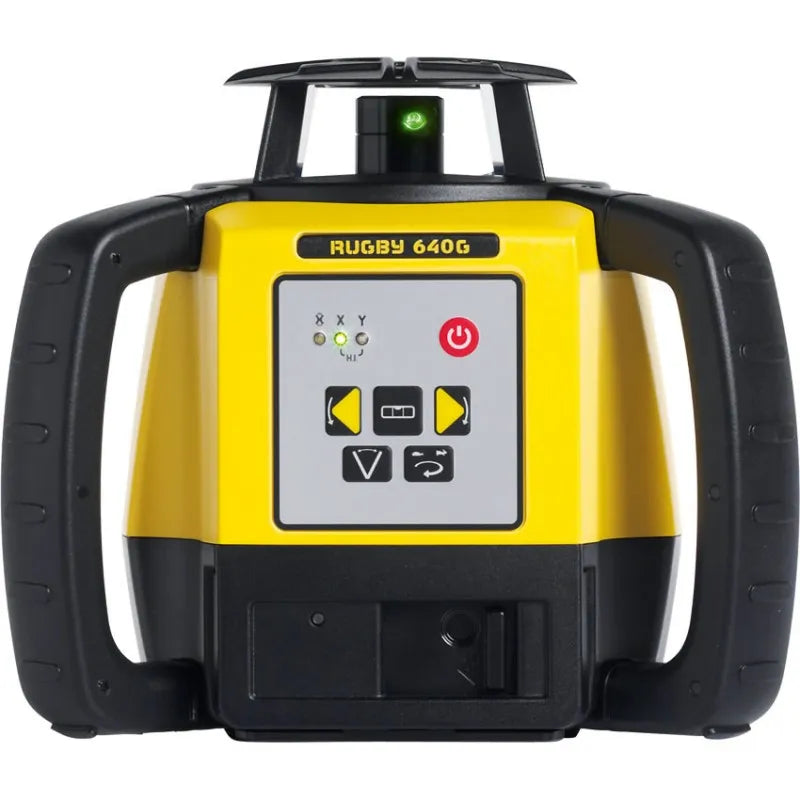

Leica Rugby 640G rotating laser - Versatility inside and outside
When levelling and aligning in and around buildings, red beams can be difficult to see. Leica Rugby 640G green beam rotating laser enables you to easily see wherever you are working.
This universal, multipurpose laser provides the best beam visibility and functionality for interior and exterior applications. From installing drywall to working on suspended ceilings and raised floors, the new, bright green beam ensures you don’t miss the mark.
The green beam uses the latest in green diode technology, visible up to 30 metres without a receiver. An IP67 protection and up to 60 hours operating time make these lasers the most trusted and rugged choice for any interior project.
Rugby 640G is delivered with the Leica Rod-Eye 120G with digital read-out ability for convenient offset readings and outstanding operating range. The universal Rugby 640G also performs reliably outdoors, even in freezing temperatures.
Features
- New green diode technology in the Rugby 640G provides outstanding visibility for indoor application
- Fit for any interior and exterior levelling, aligning and squaring application
- Work conveniently with offsets thanks to the Rod Eye receivers digital read-out
- Scan 90 – make layout easier by quickly moving the beam 90 degrees to the left or right side
- Plumb Down – automatic and accurate plum down direction for alignment over a reference point
- battery
- Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up
- The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time
- Alkaline batteries

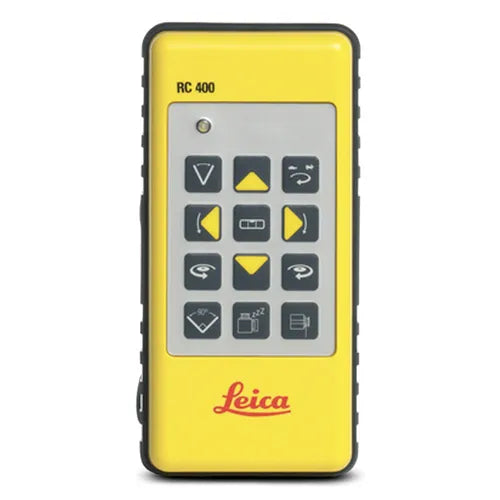

- RC400 remote control included

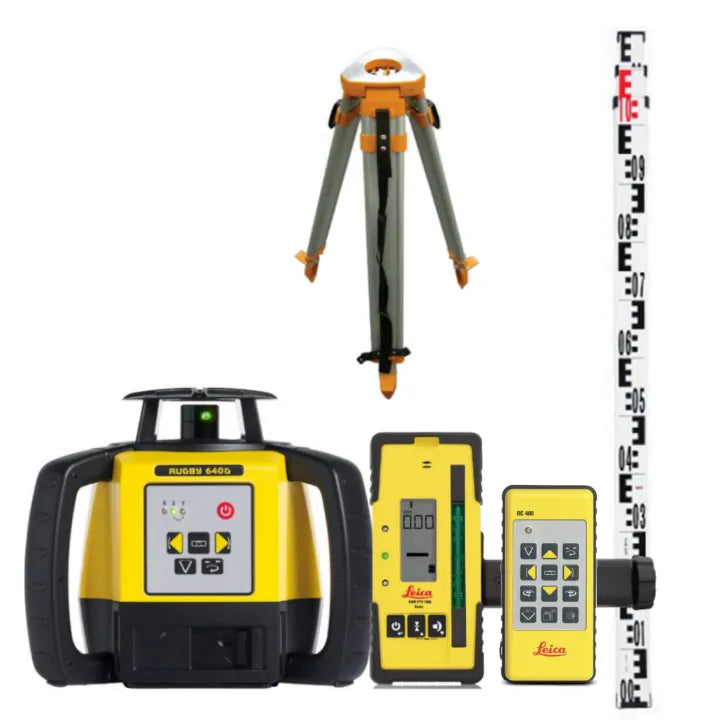

Includes
- Leica Rugby 640G Green Beam Rotating Laser
- Rod-Eye 120G Laser Receiver and bracket
- Leica RC400 Remote Control
- 3 m Levelling Staff
- Flat Head Dual Lock Aluminium Tripod - max height 1.66 m
- Carry Case
- Instructions
- Alkaline Batteries
Specifications - Leica Rugby 640G
|
Functionality |
Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
|
Range (diameter) |
400 m |
|
Self-levelling accuracy (defined at 25°C) |
± 2.2 mm @ 30 m |
|
Self-levelling range |
± 5° |
|
H.I. elevation alert |
YES |
|
Rotation speeds |
0, 2, 5, 10 rps |
|
Scanning modes |
10°, 45°, 90° |
|
Scan90 |
Yes |
|
Plumb up |
Yes |
|
Plumb down |
Yes |
|
Sleep mode |
Yes |
|
Laser diode type / class |
520 nm / Class 2 |
|
Dimensions (HxWxD) |
212 x 239 x 192 mm |
|
Weight with batteries |
2.6 kg |
|
Protection class (splash water / dust proof) |
IP67 |
|
Operating temperature range |
-20° to +50°C |
|
Remote range (radius) |
100 m |

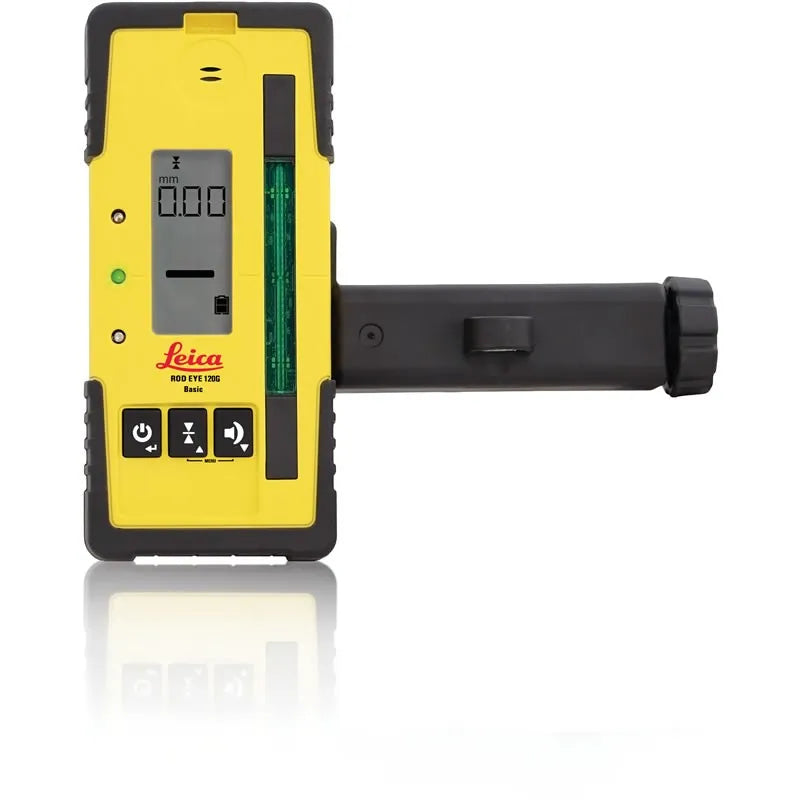

Specifications - Rod-Eye 120G Green Laser Receiver
| Working Diameter | 900m |
| Detection Window | 70mm |
| Digital Readout/units | No |
| Automatic Shutoff | 10 minutes |
| Audio Volumes | High/Low/Off |
| Arrow Display | Nine Channels |
| Detection Accuracies | fine +/- 1mm, Medium +/-2mm, Coarse +/- 3mm |
| Protection Class | IP67 (Splash, water/dust proof) |
| Battery Type/Life | 2x AA/50+ hours |
