Leica Rugby 680 Rotating Laser Level Kit with Rod-Eye 160 Laser Receiver, Levelling Staff and Tripod
$3,916.00
- Description
- Why Buy From Us?
- Shipping
Description
LEICA RUGBY 680 - GREAT VALUE SEMI-AUTOMATIC DIAL-IN GRADE LASER
Bring simplicity to construction applications with the Leica Rugby 680 semi-automatic grade laser. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, the Rugby 680 construction laser is easy to use and effective in all levelling and grading tasks.
Slopes done easily
Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual grade laser. The simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.
Accurate performance throughout the day
Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.

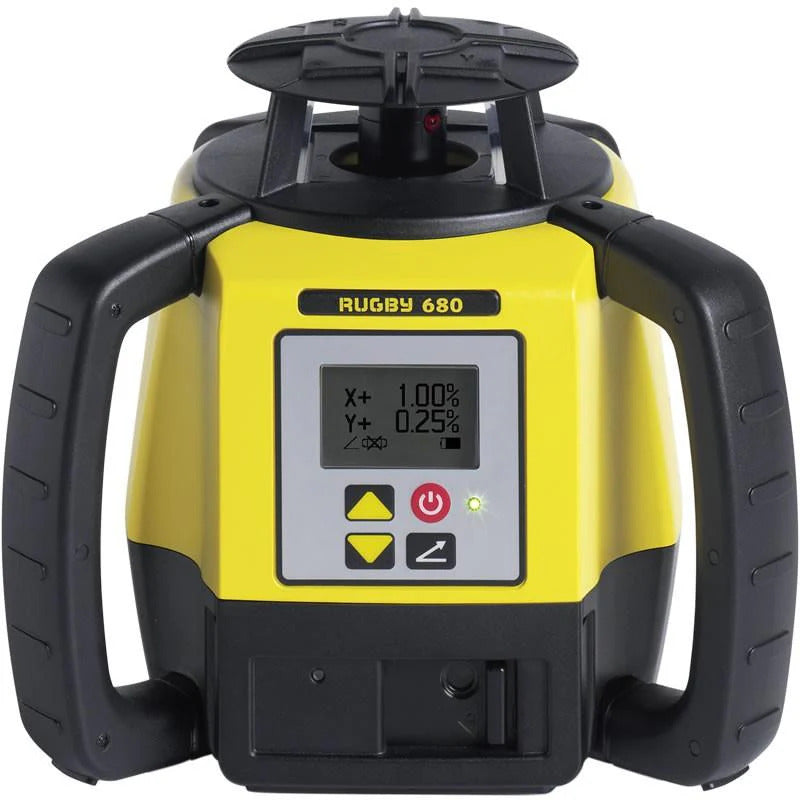

Specifications - Leica Rugby 680 Rotating Laser Level
|
Functionality |
Self-levelling horizontal, dial-in grade in dual axis |
|
Range (diameter) |
1,100 m |
|
Self-levelling accuracy (defined at 25°C) |
± 1.5 mm @ 30 m |
|
Self-levelling range |
± 5° |
|
Grade range |
± 8% SG |
|
Smart slope |
YES |
|
Rotation speeds |
10 rps |
|
Laser diode type / class |
635 nm / Class 1 |
|
Dimensions (HxWxD) |
212 x 239 x 192 mm |
|
Protection class (splash water / dust proof) |
IP67 |
|
Operating temperature range |
-20° to +50°C |

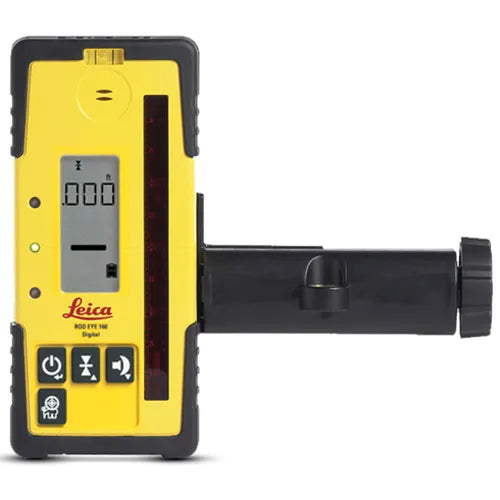

Specifications - Leica Rod-Eye 160 Laser Receiver
|
Working diameter (laser dependent): |
1350 m |
|
Detection height: |
120 mm |
|
Numeric readout height: |
90 mm |
|
Detectable spectrum: |
600 nm to 800 nm |
|
Very fine: |
± 0.5 mm |
|
Fine: |
± 1.0 mm |
|
Medium: |
± 2.0 mm |
|
Coarse: |
± 3.0 mm |
|
Very coarse: |
± 5.0 mm |
|
Audio volumes: |
105 dBA / 95 dBA / 65dBA / Off |
|
Automatic shut off: |
10 minutes |
|
Digital readout: |
Units: mm, cm, in, in (fractions), ft |
|
Arrow display: |
15 channels |
|
Anti-strobe protection: |
Yes |
|
Memory, last beam strike: |
Yes |
|
Beam finding (double beep): |
Yes |
|
Laser low battery indicator: |
Yes |
|
Warranty: |
Three years |
|
Environmental: |
IP67 |
|
Batteries: |
50+ hours (2 x 1.5 V "AA" ) |
|
Dimensions: |
173 x 76 x 29 mm |
|
Operating temperature: |
-20°C to +50°C |
|
Storage temperature (except batteries): |
-40°C to +70°C |

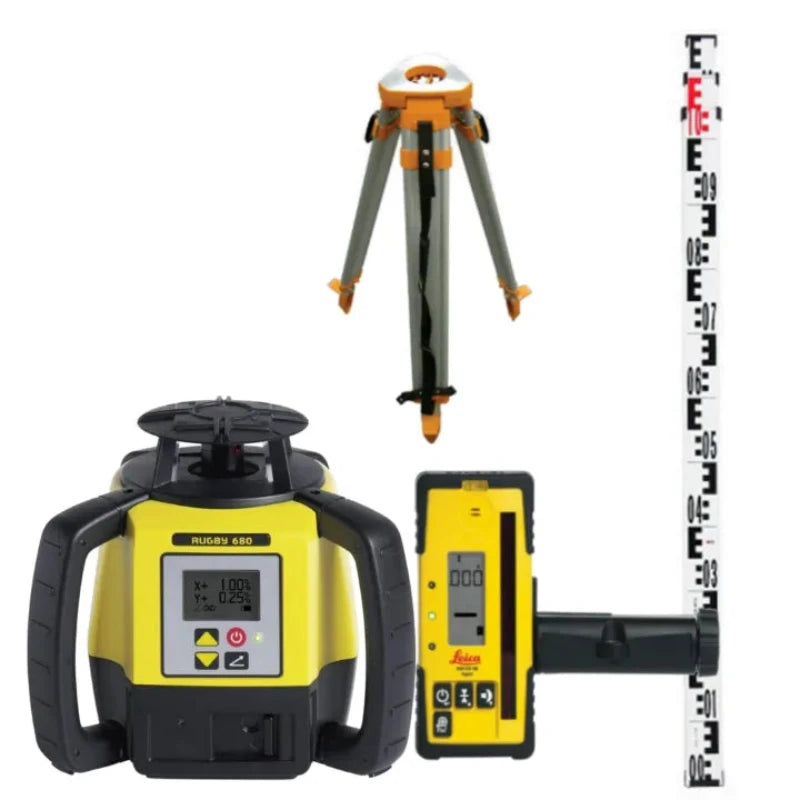

Includes
- Leica Rugby 680 Rotating Laser Level
-
Rod-Eye 160 Laser Receiver and bracket
- 3 m Levelling Staff
- Flat Head Dual Lock Aluminium Tripod - max height 1.66 m
- Carry Case
- Instructions
- Li-Ion rechargeable battery
